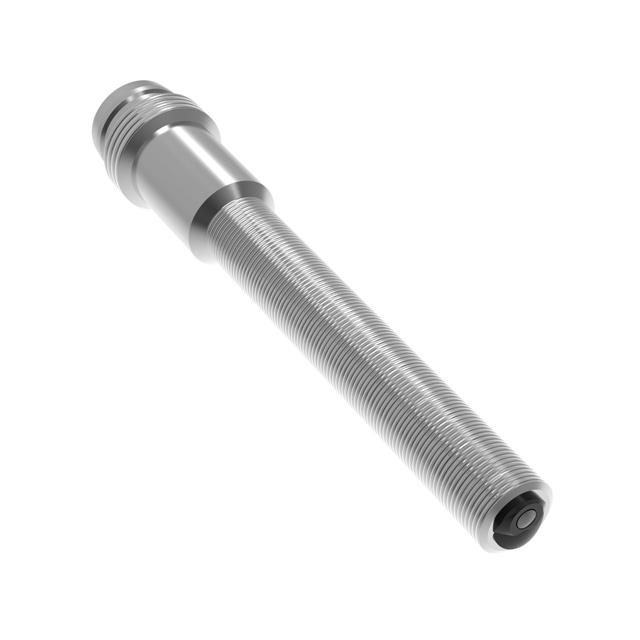

VSM-2M5APD20-Q7
ActivePHOTOELECTRIC SENSORS VSM-2 SERIES: 5 MM BARREL DIFFUSE; RANGE: 20 MM; INPUT 10-30 V DC; OUTPUT: 1 PNP WITH IO-LINK COMMUNICATION; LO (LIGHT OPERATE); INTEGRAL 3-PIN M8; COMES WITH (2) M5 NUTS AND (2) LOCK WASHERS
VSM-2M5APD20-Q7
ActivePHOTOELECTRIC SENSORS VSM-2 SERIES: 5 MM BARREL DIFFUSE; RANGE: 20 MM; INPUT 10-30 V DC; OUTPUT: 1 PNP WITH IO-LINK COMMUNICATION; LO (LIGHT OPERATE); INTEGRAL 3-PIN M8; COMES WITH (2) M5 NUTS AND (2) LOCK WASHERS
Description
General part information
VSM-2M5 Series
Diffuse Optical Sensor 0.787" (20mm) PNP - Light-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | VSM-2M5APD20-Q7 |
|---|---|
| Connection Method | Connector |
| Ingress Protection | IEC IP67, IEC, IP67 |
| Light Source | Red |
| Light Source Wavelength (Red) | 630 nm |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | PNP - Light-ON |
| Response Time | 500 µs |
| Sensing Distance | 0.787 " |
| Sensing Method | Diffuse |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
