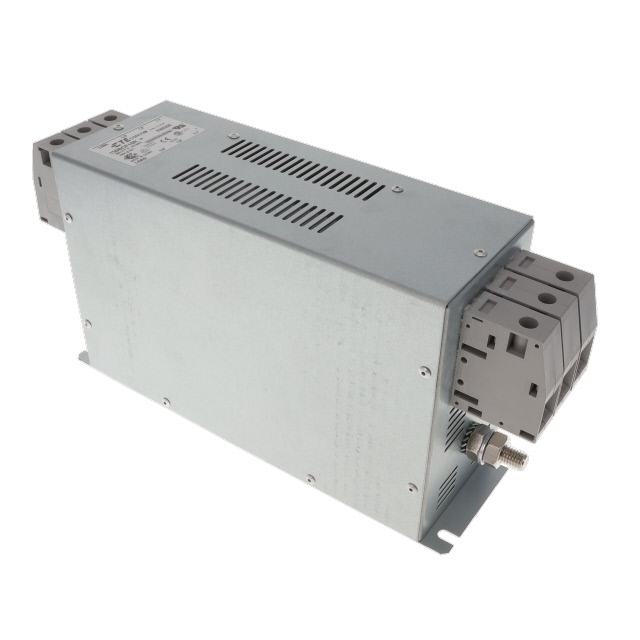

130BCF10R

Active

TE Connectivity Corcom Filters

LINE FILTER 130A CHASSIS MOUNT

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

LINE FILTER 130A CHASSIS MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	130BCF10R

Applications	General Purpose
Approval Agency	VDE, CSA, UR
Configuration	Two Stage
Current	130 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Inductance	550 µH
Mounting Type	Chassis Mount
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Termination Style	Terminal Block
Voltage - Rated AC (Phase to Phase)	480 V

LINE FILTER 130A CHASSIS MOUNT

Part	Mounting Type	Approval Agency	Voltage - Rated AC (Phase to Phase)	Inductance	Applications	Filter Type	Frequency - Operating [Max]	Frequency - Operating [Min]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Current	Termination Style	Configuration
TE Connectivity Corcom Filters 130BCF10R	Chassis Mount	CSA, UR, VDE	480 V	550 µH	General Purpose	Three Phase (Delta)	60 Hz	50 Hz	-10 °C	50 °C	130 A	Terminal Block	Two Stage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 530.52

General part information

Three Phase (Delta) EMC/EMI Line Filter 130 A 50/60Hz Two Stage Terminal Block
