2112323-1

Active

TE Connectivity Raychem Cable Protection

CONNECTOR ACCESSORY, SINGLE WIRE SEAL, AMP MICRO TIMER II SERIES AUTOMOTIVE CONNECTORS

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONNECTOR ACCESSORY, SINGLE WIRE SEAL, AMP MICRO TIMER II SERIES AUTOMOTIVE CONNECTORS

Technical Specifications

Parameters and characteristics for this part

Specification	2112323-1

Accessory Type	Plug, Sealing
For Use With/Related Products	Heavy Duty Sealed Connector Series

Part	Contact Termination	Pin or Socket	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	For Use With/Related Products	Accessory Type	Number of Positions	Type
TE Connectivity Raychem Cable Protection 964263-3	Crimp	Socket	31.5 µin	0.8 µm	17 AWG	20 AWG	Gold
TE Connectivity Raychem Cable Protection 2112323-1								Heavy Duty Sealed Connector Series	Plug Sealing
TE Connectivity Raychem Cable Protection 185158-1
TE Connectivity Raychem Cable Protection 1473288-1									Secondary Lock	6
TE Connectivity Raychem Cable Protection 969005-2	Crimp	Socket			20 AWG	24 AWG	Tin
TE Connectivity Raychem Cable Protection 936782-2
TE Connectivity Raychem Cable Protection 962943-5	Crimp	Socket	31.5 µin	0.8 µm	17 AWG	20 AWG	Gold
TE Connectivity Raychem Cable Protection 964274-8	Crimp	Socket			17 AWG	20 AWG	Silver				Stamped
TE Connectivity Raychem Cable Protection 2141900-2
TE Connectivity Raychem Cable Protection 4-964274-1	Crimp	Socket	31.5 µin	0.8 µm	17 AWG	20 AWG	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

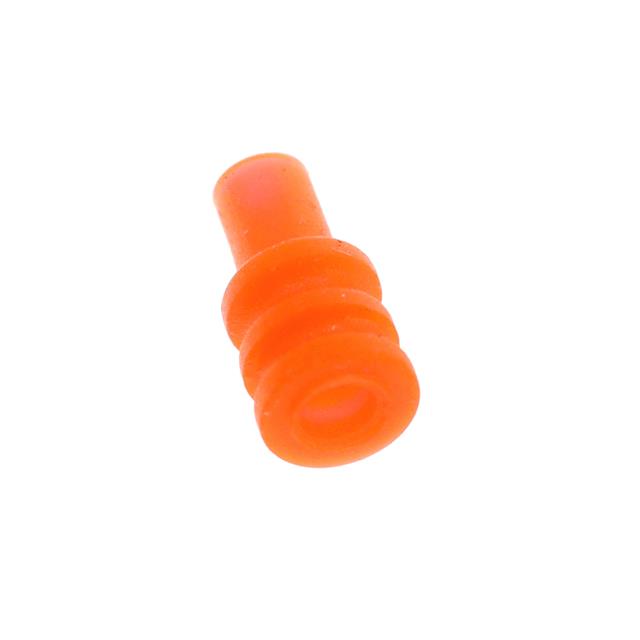

Single Wire Seal (SWS), 3.6 mm [.142 in] Cavity Diameter, -40 – 130 °C [-40 – 266 °F], Orange, Silicone, Micro Timer II
