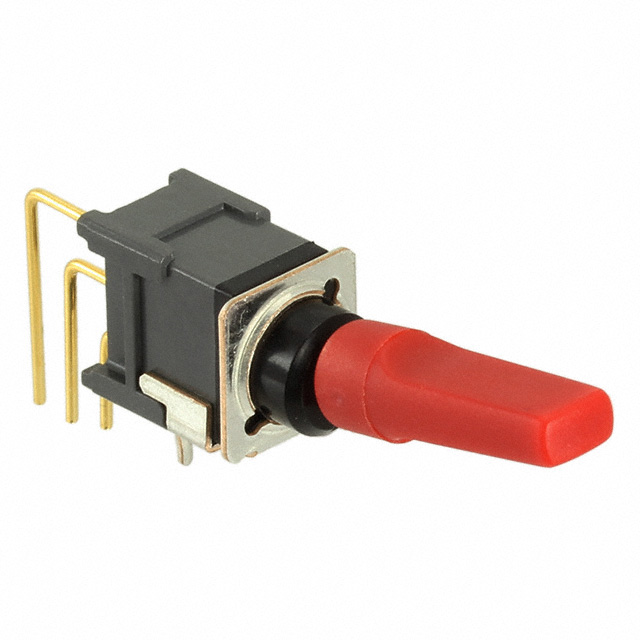

B12KV-BC

Active

NKK Switches

PROCESS SEALED SUBMINIATURE ANTISTATIC TOGGLE

Search across all available documentation for this part.

Active

NKK Switches

PROCESS SEALED SUBMINIATURE ANTISTATIC TOGGLE

Technical Specifications

Parameters and characteristics for this part

Specification	B12KV-BC

Actuator Material	Nylon, Polyamide (PA)
Actuator Type	Snap On Paddle
Bushing Thread	Unthreaded
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Red Actuator
Illumination	Non-Illuminated
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Bushing Thread	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current Rating (Amps)	Voltage Rating - AC	Switch Function	Actuator Type	Illumination	Voltage Rating - DC	Electrical Life	Features	Termination Style	Circuit	Actuator Material	Actuator Length [x]
NKK Switches B12KV-BA	Unthreaded	-30 ░C	85 °C	Right Angle Through Hole Vertical	0.4 VA	28 V	On-On	Snap On Paddle	Non-Illuminated	28 V	50000 Cycles	Black Actuator	PC Pin	SPDT	Nylon Polyamide (PA)
NKK Switches B12KV-AH	Unthreaded	-30 ░C	85 °C	Right Angle Through Hole Vertical	0.4 VA	28 V	On-On	Snap On Paddle	Non-Illuminated	28 V	50000 Cycles	Gray Actuator	PC Pin	SPDT	Nylon Polyamide (PA)	9.4 mm
NKK Switches B12KV-BC	Unthreaded	-30 ░C	85 °C	Right Angle Through Hole Vertical	0.4 VA	28 V	On-On	Snap On Paddle	Non-Illuminated	28 V	50000 Cycles	Red Actuator	PC Pin	SPDT	Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Through Hole, Right Angle, Vertical

Technical documentation and resources
