846-030-559-602

Active

EDAC Inc.

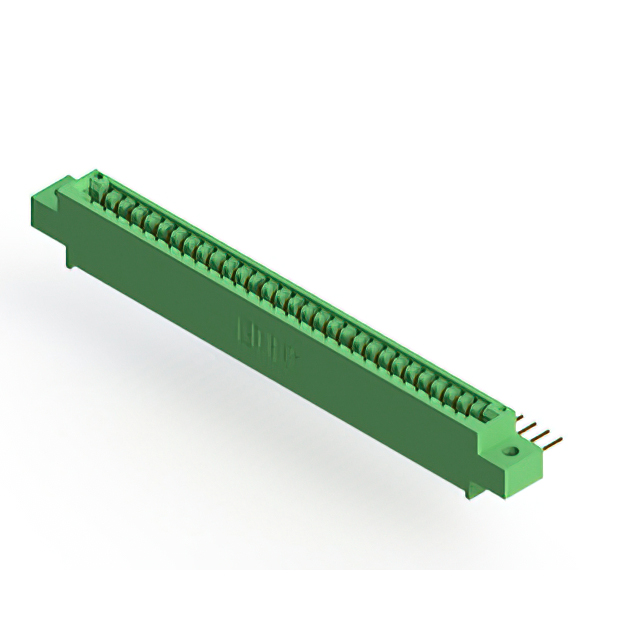

3.18MM RIGHT-ANGLE 30P -40℃~+125℃ PUSH-PULL,P=3.18MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

846-030-559-602

Active

EDAC Inc.

3.18MM RIGHT-ANGLE 30P -40℃~+125℃ PUSH-PULL,P=3.18MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	846-030-559-602

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Right Angle
Number of Positions	30
Number of Positions/Bay/Row [custom]	30
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Single
Termination	Solder
Termination Rows	1

846-030 Series

...

Part	Read Out	Card Type	Termination	Contact Material	Contact Finish	Pitch [x]	Pitch [x]	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Gender	Contact Type	Termination Rows	Color	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Mounting Type	Number of Positions/Bay/Row [custom]	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 846-030-521-207	Dual	Non Specified - Dual Edge	Solder	Copper Alloy	Gold	0.125 in	3.18 mm	Flush Mount M3 Threaded Insert Top Opening	10 Áin	0.25 Ám	30	Female	Cantilever	2	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Through Hole	15	2	125 °C	-40 °C
EDAC Inc. 846-030-558-101	Single	Non Specified - Single Edge	Solder	Copper Alloy	Gold	0.125 in	3.18 mm		10 Áin	0.25 Ám	30	Female	Cantilever	1	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Through Hole Right Angle	30	1	125 °C	-40 °C
EDAC Inc. 846-030-540-612	Single	Non Specified - Single Edge	Wire Wrap	Copper Alloy	Gold	0.125 in	3.18 mm	Side Mount Opening Unthreaded	10 Áin	0.25 Ám	30	Female	Cantilever	1	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Through Hole	30	1	125 °C	-40 °C	3.25 mm	0.128 in
EDAC Inc. 846-030-540-203	Dual	Non Specified - Dual Edge	Wire Wrap	Copper Alloy	Gold	0.125 in	3.18 mm	Floating Bobbin Flush Mount	10 Áin	0.25 Ám	30	Female	Cantilever	2	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Through Hole	15	2	125 °C	-40 °C			0.116 in	2.95 mm
EDAC Inc. 846-030-540-108	Single	Non Specified - Single Edge	Wire Wrap	Copper Alloy	Gold	0.125 in	3.18 mm	4-40 Flush Mount Threaded Insert Top Opening	10 Áin	0.25 Ám	30	Female	Cantilever	1	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Through Hole	30	1	125 °C	-40 °C
EDAC Inc. 846-030-559-602	Single	Non Specified - Single Edge	Solder	Copper Alloy	Gold	0.125 in	3.18 mm		10 Áin	0.25 Ám	30	Female	Cantilever	1	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Through Hole Right Angle	30	1	125 °C	-40 °C	3.25 mm	0.128 in
EDAC Inc. 846-030-555-808	Dual	Non Specified - Dual Edge	Solder Eyelet(s)	Copper Alloy	Gold	0.125 in	3.18 mm	4-40 Threaded Insert Top Mount Opening	10 Áin	0.25 Ám	30	Female	Cantilever	2	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Board Edge Straddle Mount	15	2	125 °C	-40 °C					Card Extender
EDAC Inc. 846-030-500-203	Dual	Non Specified - Dual Edge	Solder Eyelet(s)	Copper Alloy	Gold	0.125 in	3.18 mm	Floating Bobbin Flush Mount	10 Áin	0.25 Ám	30	Female	Cantilever	2	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Through Hole	15	2	125 °C	-40 °C			0.116 in	2.95 mm
EDAC Inc. 846-030-522-201	Dual	Non Specified - Dual Edge	Solder	Copper Alloy	Gold	0.125 in	3.18 mm		10 Áin	0.25 Ám	30	Female	Cantilever	2	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Through Hole	15	2	125 °C	-40 °C
EDAC Inc. 846-030-540-204	Dual	Non Specified - Dual Edge	Wire Wrap	Copper Alloy	Gold	0.125 in	3.18 mm	Flush Mount Top Opening Unthreaded	10 Áin	0.25 Ám	30	Female	Cantilever	2	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Through Hole	15	2	125 °C	-40 °C			0.156 in	3.96 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 51.18
LCSC	Piece	1	$ 48.55
		200	$ 18.79
		500	$ 18.13
		1000	$ 17.80

Description

General part information

846-030 Series

30 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
