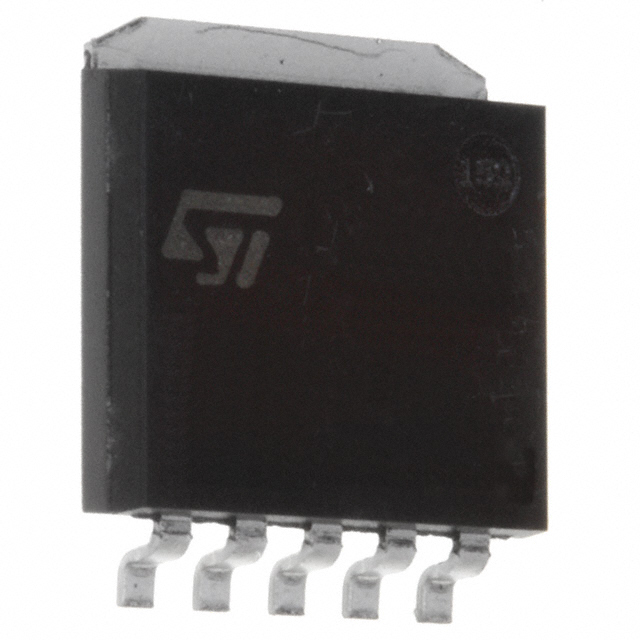

ST2L01K5R

Obsolete

STMicroelectronics

IC REG LIN POS ADJ 1A/1A 5-SPAK

Search across all available documentation for this part.

Obsolete

STMicroelectronics

IC REG LIN POS ADJ 1A/1A 5-SPAK

Technical Specifications

Parameters and characteristics for this part

Specification	ST2L01K5R

Current - Output	1 A
Mounting Type	Surface Mount
Number of Regulators	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	0 °C
Output Configuration	Positive
Output Type	Adjustable (Fixed)
Package / Case	SPAK-5 (5 Leads + Tab)
Protection Features	Over Current, Over Temperature
PSRR	80 dB, 43 dB
PSRR [Max]	38 dB
PSRR [Min]	70 db
Supplier Device Package	5-SPAK
Voltage - Input (Max) [Max]	5.25 V
Voltage - Output (Max) [Max]	3 V
Voltage Dropout (Max) [Max]	1.3 V

Part	Protection Features	Current - Output	Mounting Type	Package / Case	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Output Configuration	PSRR	PSRR [Min]	PSRR [Max]	Voltage Dropout (Max) [Max]	Voltage - Output (Max) [Max]	Voltage - Input (Max) [Max]	Number of Regulators
STMicroelectronics ST2L01K5R	Over Current Over Temperature	1 A	Surface Mount	SPAK-5 (5 Leads + Tab)	Adjustable (Fixed)	0 °C	125 °C	5-SPAK	Positive	43 dB 80 dB	70 db	38 dB	1.3 V	3 V	5.25 V	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Adjustable (Fixed) 2 Output 1A, 1A 5-SPAK

Technical documentation and resources

No documents available
