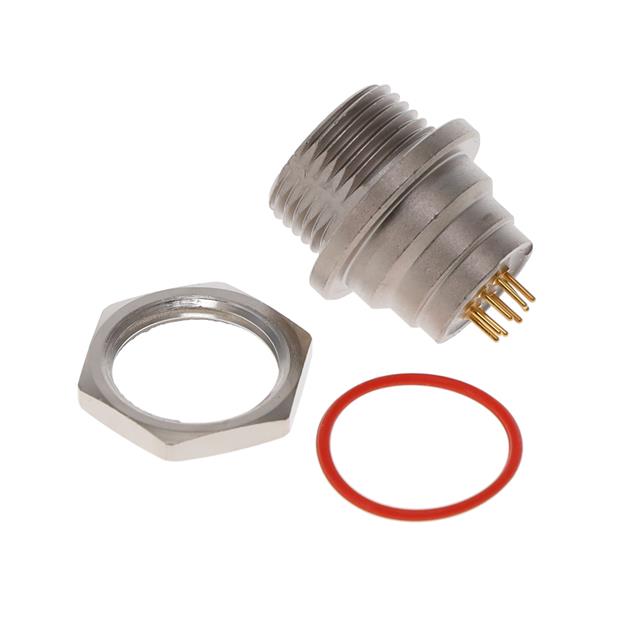

HS2P8F26-BPE

Active

Switchcraft Inc.

CONN RCPT FMALE 8POS GOLD SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT FMALE 8POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	HS2P8F26-BPE

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Push-Pull
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	8
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Solder
Voltage Rating	30 VAC

CONN RCPT FMALE 8POS GOLD SOLDER

Part	Mounting Feature	Insert Material	Primary Material	Fastening Type	Shell Material	Number of Positions	Shielding	Applications	Shell Finish	Orientation	Contact Material	Ingress Protection	Connector Type	Contact Finish - Mating	Color	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Mounting Type	Termination
Switchcraft Inc. HS2P8F26-BPE	Bulkhead - Front Side Nut	Liquid Crystal Polymer (LCP)	Metal	Push-Pull	Copper Alloy	8	Shielded	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Electroless Nickel	Keyed	Copper Alloy	IP66, IP67, IP68	Receptacle, Female Sockets	Gold	Silver	135 °C	-40 °C	30 VAC	Panel Mount, Through Hole	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle, Female Sockets Solder
