PCAP01-EVA-KIT

Active

ScioSense

EVAL BOARD FOR PCAP01

Search across all available documentation for this part.

Active

ScioSense

EVAL BOARD FOR PCAP01

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PCAP01-EVA-KIT	PCAP01 Series

Contents	Board(s)	Board(s)
Data Interface	-	I2C, SPI
Function	Capacitance-to-Digital Converter	Capacitance-to-Digital Converter
Mounting Type	-	Surface Mount
Number of Channels	-	8
Operating Temperature	-	125 °C
Operating Temperature	-	-40 °C
Package / Case	-	Die, 32-VFQFN Exposed Pad
Resolution (Bits)	-	17 b
Sampling Rate (Per Second)	-	500k
Supplier Device Package	-	Die, 32-QFN (5x5)
Type	Interface	Interface, Capacitance-to-Digital Converter
Utilized IC / Part	PCap01	PCap01
Voltage - Supply	-	2.1 V
Voltage - Supply	-	3.6 V
Voltage Supply Source	-	Single Supply

EVAL BOARD FOR PCAP01

Part	Function	Type	Utilized IC / Part	Contents	Mounting Type	Package / Case	Sampling Rate (Per Second)	Supplier Device Package	Data Interface	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Voltage Supply Source	Number of Channels	Resolution (Bits)
ScioSense PCAP01-EVA-KIT	Capacitance-to-Digital Converter	Interface	PCap01	Board(s)
ScioSense PCAP01A DICE		Capacitance-to-Digital Converter			Surface Mount	Die	500k	Die	I2C, SPI	125 °C	-40 °C	2.1 V	3.6 V	Single Supply	8	17 b
ScioSense PCAP01AD 1K		Capacitance-to-Digital Converter			Surface Mount	32-VFQFN Exposed Pad		32-QFN (5x5)	I2C, SPI	125 °C	-40 °C	2.1 V	3.6 V	Single Supply	8	17 b

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

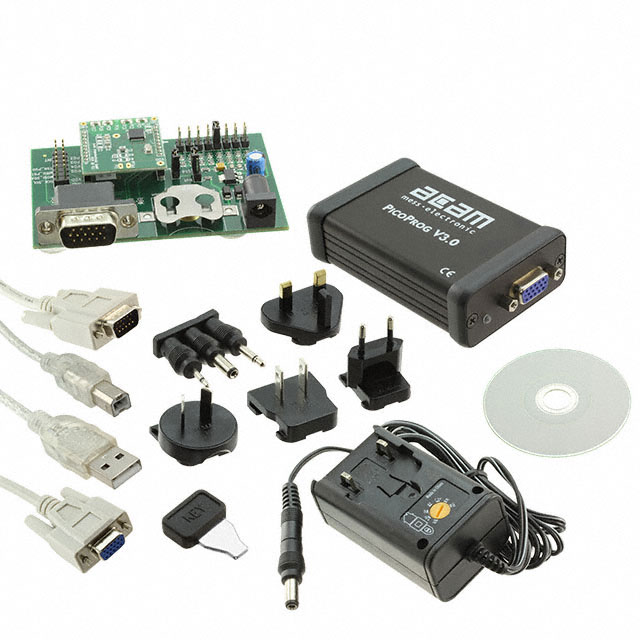

PCap01 PICOCAP® Capacitance-to-Digital Converter Interface Evaluation Board
