7282-4PG-300

Active

Conxall/Switchcraft

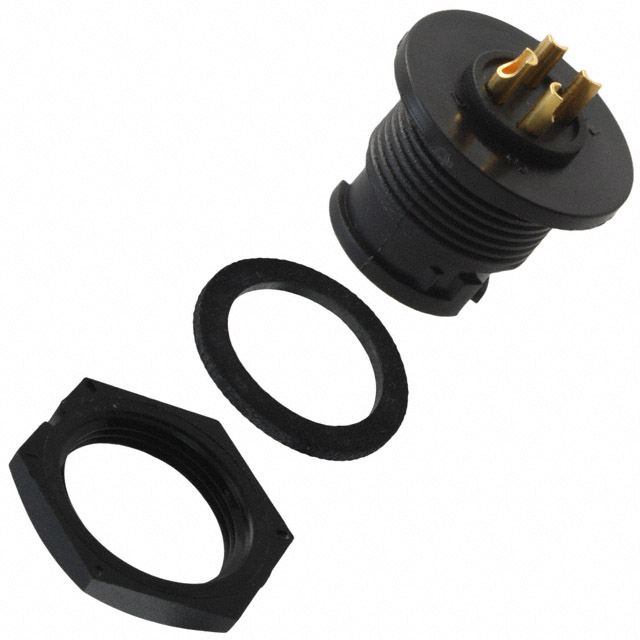

CONN RCPT MALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	7282-4PG-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	4
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

CONN RCPT MALE 4P GOLD SLDR CUP

Part	Backshell Material, Plating	Applications	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Color	Voltage Rating	Number of Positions	Contact Material	Orientation	Current Rating (Amps)	Shielding	Ingress Protection	Contact Finish - Mating	Mounting Feature	Primary Material
Conxall/Switchcraft 7282-4PG-300	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Male Pins, Receptacle	-40 °C	115 °C	Bayonet Lock	Black	600 V	4	Brass	Keyed	Varies by Wire Gauge	Unshielded	Weathertight	Gold	Bulkhead - Front Side Nut	Plastic
