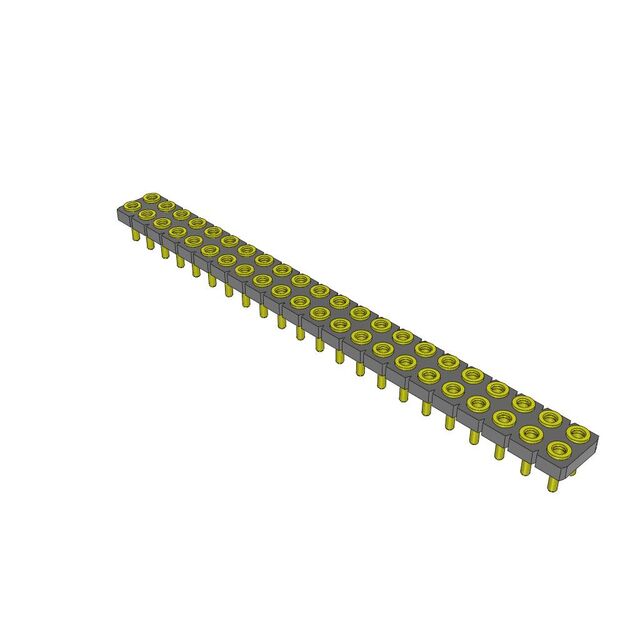

SDL-122-G-19

Active

Samtec Inc.

IC & COMPONENT SOCKETS .100" LOW PROFILE DOUBLE ROW SCREW MACHINE SOCKET STRIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

SDL-122-G-19

Active

Samtec Inc.

IC & COMPONENT SOCKETS .100" LOW PROFILE DOUBLE ROW SCREW MACHINE SOCKET STRIP

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDL-122-G-19

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Post [x]	2.08 mm
Contact Length - Post [x]	0.082 "
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	2.1 mm
Insulation Height	0.083 "
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	44
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

SDL-110 Series

IC & Component Sockets .100" Low Profile Double Row Screw Machine Socket Strip

...

Part	Contact Type	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Contact Finish - Mating	Number of Positions	Fastening Type	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Connector Type	Number of Positions Loaded	Contact Shape	Number of Rows	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post
Samtec Inc. SDL-110-G-19	Female Socket	Through Hole	10 çin	0.25 çm	Solder	-55 °C	125 °C	2.08 mm	0.082 "	Black	Gold	20	Push-Pull	Beryllium Copper	30 Áin	0.76 Ám	2.1 mm	0.083 "	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	Receptacle	All	Circular	2
Samtec Inc. SDL-122-G-19	Female Socket	Through Hole	10 çin	0.25 çm	Solder	-55 °C	125 °C	2.08 mm	0.082 "	Black	Gold	44	Push-Pull	Beryllium Copper	30 Áin	0.76 Ám	2.1 mm	0.083 "	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	Receptacle	All	Circular	2
Samtec Inc. SDL-114-G-19	Female Socket	Through Hole	10 çin	0.25 çm	Solder	-55 °C	125 °C	2.08 mm	0.082 "	Black	Gold	28	Push-Pull	Beryllium Copper	30 Áin	0.76 Ám	2.1 mm	0.083 "	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	Receptacle	All	Circular	2
Samtec Inc. SDL-124-G-12	Female Socket	Through Hole	10 çin	0.25 çm	Solder	-55 °C	125 °C	2.41 mm	0.095 in	Black	Gold	48	Push-Pull	Beryllium Copper	30 Áin	0.76 Ám			Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	Receptacle	All	Circular	2	0.095 in	2.41 mm
Samtec Inc. SDL-116-G-10	Female Socket	Through Hole	10 çin	0.25 çm	Solder	-55 °C	125 °C			Black	Gold		Push-Pull	Beryllium Copper	30 Áin	0.76 Ám	3.1 mm	0.122 in	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	Receptacle	All	Circular	2			0.108 in	2.75 mm
Samtec Inc. SDL-116-G-12	Female Socket	Through Hole	10 çin	0.25 çm	Solder	-55 °C	125 °C	2.41 mm	0.095 in	Black	Gold		Push-Pull	Beryllium Copper	30 Áin	0.76 Ám			Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	Receptacle	All	Circular	2	0.095 in	2.41 mm
Samtec Inc. SDL-120-TT-10	Female Socket	Through Hole			Solder	-55 °C	105 ░C			Black		40	Push-Pull	Beryllium Copper			3.1 mm	0.122 in	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	0.1 in	2.54 mm	Tin	Receptacle	All	Circular	2			0.108 in	2.75 mm
Samtec Inc. SDL-112-T-11	Female Socket	Through Hole			Solder	-55 °C	125 °C			Black	Gold	24	Push-Pull	Beryllium Copper	30 Áin	0.76 Ám	3.35 mm	0.132 in	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	0.1 in	2.54 mm		Receptacle	All	Circular	2			0.108 in	2.75 mm
Samtec Inc. SDL-124-T-12	Female Socket	Through Hole			Solder	-55 °C	125 °C	2.41 mm	0.095 in	Black	Gold	48	Push-Pull	Beryllium Copper	30 Áin	0.76 Ám			Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	0.1 in	2.54 mm		Receptacle	All	Circular	2	0.095 in	2.41 mm
Samtec Inc. SDL-114-T-11	Female Socket	Through Hole			Solder	-55 °C	125 °C			Black	Gold	28	Push-Pull	Beryllium Copper	30 Áin	0.76 Ám	3.35 mm	0.132 in	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	0.1 in	2.54 mm		Receptacle	All	Circular	2			0.108 in	2.75 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 16.00
		10	$ 15.14
		25	$ 14.57
		50	$ 14.22
		100	$ 14.14
Sager	N/A	1	$ 16.00
		10	$ 15.14
		25	$ 14.57
		50	$ 14.22
		100	$ 10.85
		250	$ 9.73
		500	$ 7.49
		1000	$ 5.24

Description
