Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BAT60JFILM | BAT60 Series |
|---|---|---|
| - | - | |
| Current - Average Rectified (Io) | 3 A | 3 A |
| Current - Reverse Leakage @ Vr | 6 µA | 6 µA |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature - Junction | 150 °C | 150 °C |
| Package / Case | SOD-323, SC-76 | SOD-323, SC-76 |
| Speed | 200 mA, 500 ns | 200 - 500 mA |
| Supplier Device Package | SOD-323 | SOD-323 |
| Technology | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 10 V | 10 V |
| Voltage - Forward (Vf) (Max) @ If | 580 mV | 580 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow | N/A | 9000 | $ 0.08 | |
| Digikey | Cut Tape (CT) | 1 | $ 0.24 | |
| 10 | $ 0.17 | |||
| 100 | $ 0.09 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.05 | |||
| Digi-Reel® | 1 | $ 0.24 | ||
| 10 | $ 0.17 | |||
| 100 | $ 0.09 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.05 | |||
| Tape & Reel (TR) | 3000 | $ 0.04 | ||
| 6000 | $ 0.04 | |||
| 9000 | $ 0.04 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.31 | |
| 10 | $ 0.20 | |||
| 25 | $ 0.17 | |||
| 50 | $ 0.15 | |||
| 100 | $ 0.12 | |||
| 250 | $ 0.11 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.10 | |||
BAT60 Series
10 V General pupose Signal Schottky Diode
| Part | Package / Case | Current - Reverse Leakage @ Vr | Mounting Type | Technology | Supplier Device Package | Current - Average Rectified (Io) | Operating Temperature - Junction | Speed | Voltage - Forward (Vf) (Max) @ If | Voltage - DC Reverse (Vr) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics BAT60JFILM | SC-76, SOD-323 | 6 µA | Surface Mount | Schottky | SOD-323 | 3 A | 150 °C | 200 mA, 500 ns | 580 mV | 10 V |
STMicroelectronics BAT60JFILM | ||||||||||
STMicroelectronics BAT60JFILM | ||||||||||
STMicroelectronics BAT60JFILM |
Description
General part information
BAT60 Series

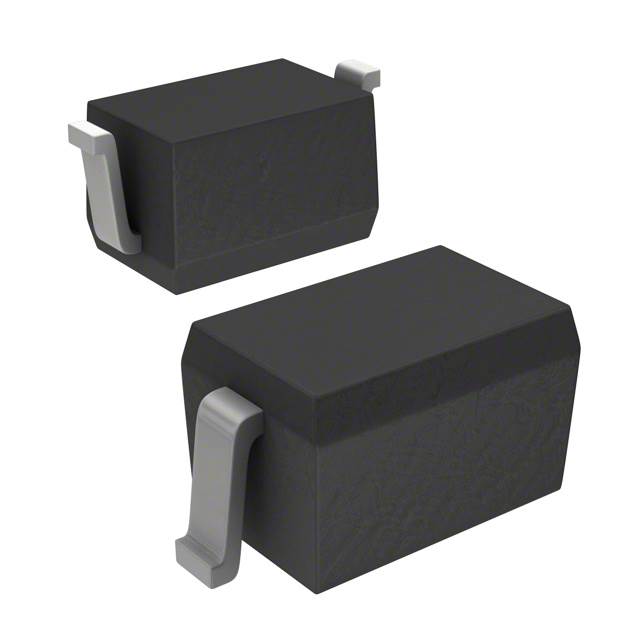

Schottky barrier diode encapsulated in a SOD-323 small SMD package.
This device is intended for use in portable equipments. It is suited for DC to DC converters, step-up conversion and power management.
