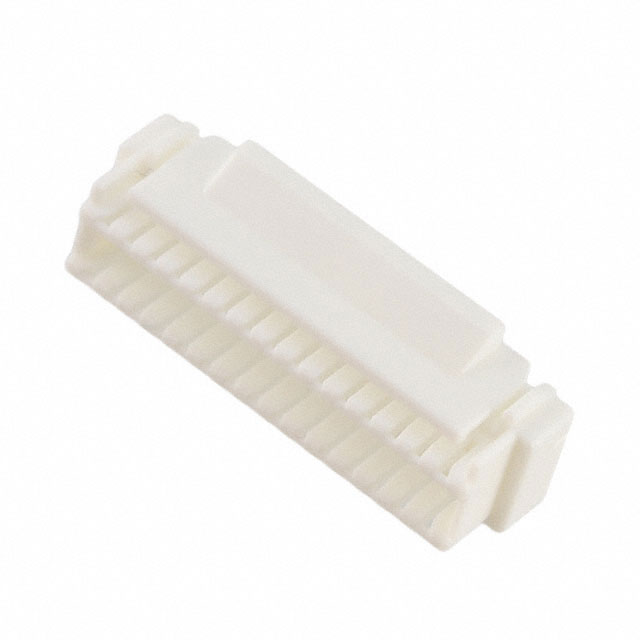

ZPDR-30V-S

Active

JST Sales America Inc.

CONN RCPT HSG 30POS 1.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet JST Prefix Suffix Chart

ZPDR-30V-S

Active

JST Sales America Inc.

CONN RCPT HSG 30POS 1.50MM

Deep-Dive with AI

DocumentsDatasheet JST Prefix Suffix Chart

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.52
		10	$ 0.45
		500	$ 0.32
		1000	$ 0.27
		5000	$ 0.24
		10000	$ 0.22

Description

General part information

ZPDR Series

30 Rectangular Connectors - Housings Receptacle Natural 0.059" (1.50mm)

Documents

Technical documentation and resources

Datasheet

JST Prefix Suffix Chart

Datasheet

Specification	ZPDR-30V-S	ZPDR Series

Color	Natural	Natural
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Lock	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	30	10 - 30
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Pitch [x]	1.5 mm	1.5 mm
Pitch [x]	0.059 in	0.059 in
