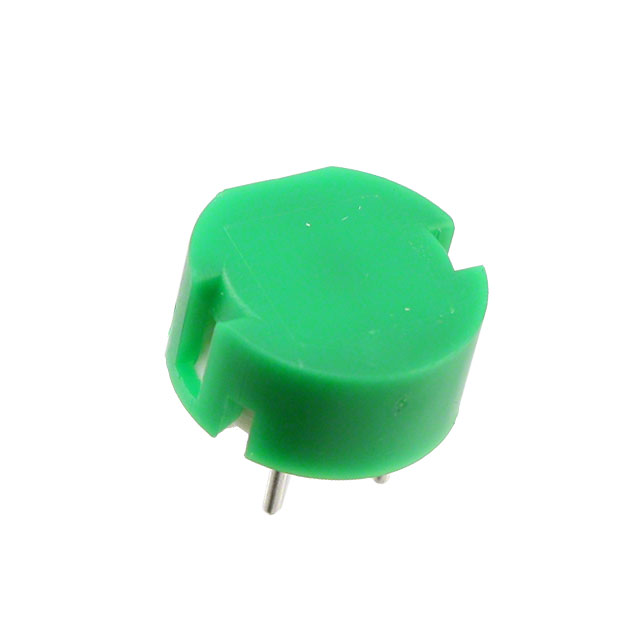

KS-04Q-03
ActiveE-Switch
SWITCH PUSH SPST-NO 0.01A 35V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KS-04Q-03 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flush, Button, Round |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Green |
| Current Rating (Amps) | 10 mA |
| Electrical Life | 250000 Cycles |
| Mechanical Life | 500000 Cycles |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Type | Standard |
| Voltage Rating - DC | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
KS-04 Series
Pushbutton Switch SPST-NO Standard Through Hole
