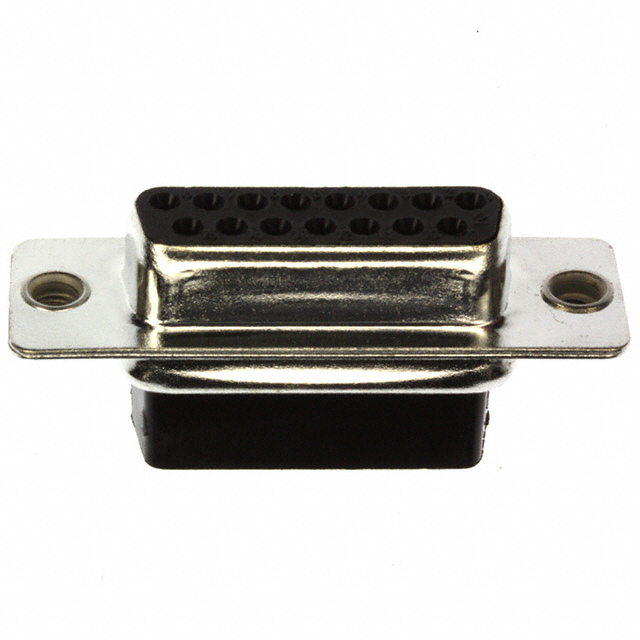

170-015-272L010

Obsolete

NorComp Inc.

CONN D-SUB HOUSING RCPT 15POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

170-015-272L010

Obsolete

NorComp Inc.

CONN D-SUB HOUSING RCPT 15POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

170-015 Series

Receptacle for Female Contacts Housing D-Sub Connector 15 Position

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	170-015-272L010	170-015 Series

Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Receptacle for Female Contacts	Plug for Male Contacts, Receptacle for Female Contacts
Contact Type	Signal	Signal
Dielectric Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT), Glass Filled, Polybutylene Terephthalate (PBT)
Features	-	Grounding Indents
Flange Feature	Cable Side	Cable Side, Housing/Shell (Unthreaded), 4-40
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	15	15
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-50 °C	-50 °C
Shell Material, Finish	-	Nickel Plated, Steel
Shell Size, Connector Layout	2	2

170-015 Series

CONN D-SUB HOUSING PLUG 15POS

Part	Shell Size, Connector Layout	Color	Number of Rows	Connector Style	Mounting Type	Flange Feature	Contact Type	Note	Connector Type	Number of Positions	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Shell Material, Finish
NorComp Inc. 170-015-172L020	2	Black	2	D-Sub	Free Hanging (In-Line)	Cable Side	Signal	Contacts Not Included	Plug for Male Contacts	15	Polybutylene Terephthalate (PBT), Glass Filled	-50 °C	125 °C
NorComp Inc. 170-015-272L010	2	Black	2	D-Sub	Free Hanging (In-Line)	Cable Side	Signal	Contacts Not Included	Receptacle for Female Contacts	15	Polybutylene Terephthalate (PBT)	-50 °C	125 °C
NorComp Inc. 170-015-172L000	2	Black	2	D-Sub	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	Signal	Contacts Not Included	Plug for Male Contacts	15	Polybutylene Terephthalate (PBT), Glass Filled	-50 °C	125 °C
NorComp Inc. 170-015-173L020	2	Black	2	D-Sub	Free Hanging (In-Line)	Cable Side	Signal	Contacts Not Included	Plug for Male Contacts	15	Polybutylene Terephthalate (PBT), Glass Filled	-50 °C	125 °C	Grounding Indents	Nickel Plated, Steel
NorComp Inc. 170-015-273L030	2	Black	2	D-Sub	Free Hanging (In-Line)	4-40	Signal	Contacts Not Included	Receptacle for Female Contacts	15	Polybutylene Terephthalate (PBT)	-50 °C	125 °C		Nickel Plated, Steel
NorComp Inc. 170-015-173L000	2		2	D-Sub	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	Signal	Contacts Not Included	Plug for Male Contacts	15	Polybutylene Terephthalate (PBT), Glass Filled	-50 °C	125 °C	Grounding Indents	Nickel Plated, Steel
NorComp Inc. 170-015-172L010	2	Black	2	D-Sub	Free Hanging (In-Line)	Cable Side	Signal	Contacts Not Included	Plug for Male Contacts	15	Polybutylene Terephthalate (PBT), Glass Filled	-50 °C	125 °C
NorComp Inc. 170-015-273L010	2	Black	2	D-Sub	Free Hanging (In-Line)	Cable Side	Signal	Contacts Not Included	Receptacle for Female Contacts	15	Polybutylene Terephthalate (PBT)	-50 °C	125 °C		Nickel Plated, Steel
NorComp Inc. 170-015-272L000	2	Black	2	D-Sub	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	Signal	Contacts Not Included	Receptacle for Female Contacts	15	Polybutylene Terephthalate (PBT)	-50 °C	125 °C
NorComp Inc. 170-015-272L030	2	Black	2	D-Sub	Free Hanging (In-Line)	4-40	Signal	Contacts Not Included	Receptacle for Female Contacts	15	Polybutylene Terephthalate (PBT)	-50 °C	125 °C
