2285577

Active

Phoenix Contact

FRONT-SFL2,5/F32/ZB

Search across all available documentation for this part.

Active

Phoenix Contact

FRONT-SFL2,5/F32/ZB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 184.76

General part information

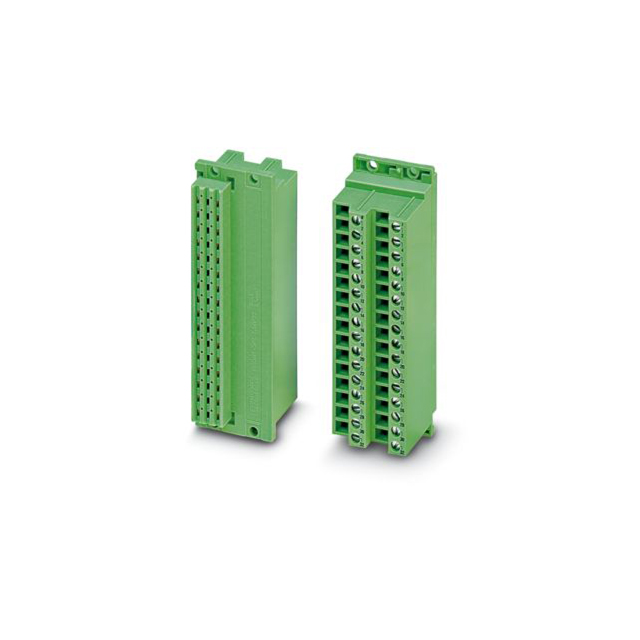

Adapter Terminal Blocks, Screw Connection, 32 Pos, 3 Rows To Card Edge Connector, 32 Pos

Technical documentation and resources

Specification	2285577	FRONT-SFL Series

Convert From (Adapter End)	Terminal Blocks, 3 Rows, 32 Pos, Screw Connection	Terminal Blocks, 32 Pos, Screw Connection, 2 Rows, 48 Pos, 3 Rows
Convert To (Adapter End)	32 Pin	2 - 32 Pin
Convert To (Adapter End)	Card Edge Connector	Card Edge Connector, Rectangular Connector, 48 Pos, 3 Rows, Female Sockets
Mounting Type	Feed Through, Panel Mount	Feed Through, Panel Mount, Panel Mount, Flange, Free Hanging (In-Line)
Wire Gauge [Max]	24 AWG	24 - 30 AWG
Wire Gauge [Min]	12 AWG	12 AWG

Part	Mounting Type	Convert From (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Wire Gauge [Min]	Wire Gauge [Max]
Phoenix Contact 2285593	Feed Through, Panel Mount	2 Rows, 32 Pos, Screw Connection, Terminal Blocks	32 Pin	Card Edge Connector	12 AWG	24 AWG
Phoenix Contact 2285603	Free Hanging (In-Line), Panel Mount, Flange	3 Rows, 48 Pos, Screw Connection, Terminal Blocks		3 Rows, 48 Pos, Female Sockets, Rectangular Connector	12 AWG	24 AWG
Phoenix Contact 2285580	Feed Through, Panel Mount	2 Rows, 32 Pos, Screw Connection, Terminal Blocks	2 Rows, 32 Pin	Female Sockets, Rectangular Connector	12 AWG	30 AWG
Phoenix Contact 2285577	Feed Through, Panel Mount	3 Rows, 32 Pos, Screw Connection, Terminal Blocks	32 Pin	Card Edge Connector	12 AWG	24 AWG
