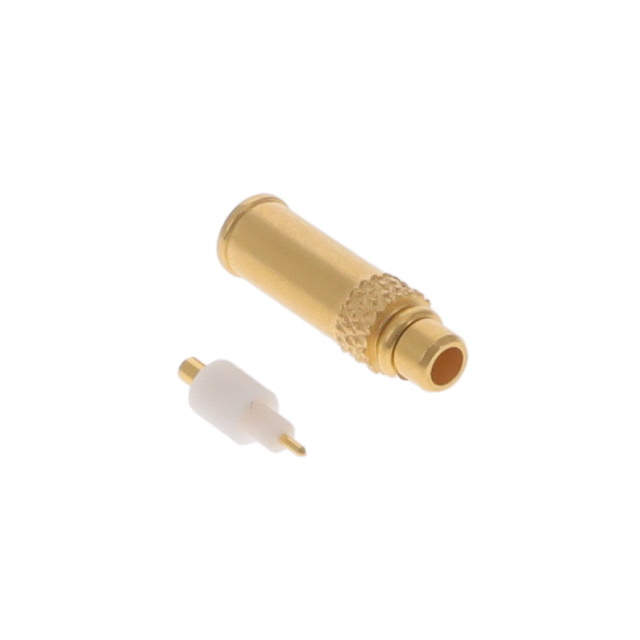

11_MMCX-50-2-1/111_OH

Active

Huber+Suhner, Inc.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

11_MMCX-50-2-1/111_OH

Active

Huber+Suhner, Inc.

11_MMCX-50-2-1/111_OH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.32
		10	$ 7.49
		25	$ 7.05
		50	$ 6.87
		100	$ 6.69
		250	$ 5.97
		500	$ 5.60
		1000	$ 4.95

Description

General part information

11_MMCX-50 Series

MMCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	11_MMCX-50-2-1/111_OH	11_MMCX-50 Series

Body Finish	Gold	Gold
Body Material	Brass	Brass
Cable Group	RG-405	RG-178, RG-316, RG-174, 188, 316, RG-405
Cable Group	-	196
Center Contact Material	Beryllium Copper	Beryllium Copper, Brass
Center Contact Plating	Gold	Gold
Connector Style	MMCX	MMCX, MMPX
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Crimp	Crimp, Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On	Snap-On
Frequency - Max [Max]	6000 MHz	67 - 6000 MHz
Housing Color	Gold	Gold
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-55 °C	-65 - -55 °C
Shield Termination	Solder	Crimp, Solder
Voltage Rating	170 V	170 V

11_MMCX-50 Series

CONN MMCX 0HZ TO 6GHZ 50OHM CRIMP ST CABLE MOUNT M GOLD OVER NICKEL SINGLE

Part	Connector Type	Body Finish	Mating Cycles	Cable Group	Cable Group	Frequency - Max [Max]	Housing Color	Body Material	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Mounting Type	Voltage Rating	Shield Termination	Center Contact Material	Connector Style	Impedance	Center Contact Plating	Number of Ports	Dielectric Material
Huber+Suhner, Inc. 11_MMCX-50-1-1/111_OE	Male Pin, Plug	Gold	500	196	RG-178	6000 MHz	Gold	Brass	Snap-On	155 °C	-55 °C	Crimp	Free Hanging (In-Line)	170 V	Crimp	Beryllium Copper	MMCX	50 Ohms	Gold	1	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Huber+Suhner, Inc. 11_MMCX-50-2-4/111_OE	Male Pin, Plug	Gold	500		RG-316	6000 MHz	Gold	Brass	Snap-On	155 °C	-55 °C	Crimp	Free Hanging (In-Line)	170 V	Crimp	Beryllium Copper	MMCX	50 Ohms	Gold	1	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Huber+Suhner, Inc. 11_MMCX-50-2-3/111_OE	Male Pin, Plug	Gold	500		188, 316, RG-174	6000 MHz	Gold	Brass	Snap-On	155 °C	-55 °C	Crimp	Free Hanging (In-Line)	170 V	Crimp	Beryllium Copper	MMCX	50 Ohms	Gold	1	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Huber+Suhner, Inc. 11_MMPX-50-2-3/111_NE	Male Pin, Plug	Gold			RG-405	67 GHz	Gold	Brass	Snap-On	155 °C	-65 ░C	Crimp	Free Hanging (In-Line)	170 V	Solder	Beryllium Copper, Brass	MMPX	50 Ohms	Gold	1	Polytetrafluoroethylene (PTFE)
Huber+Suhner, Inc. 11_MMCX-50-2-3/111_OH	Male Pin, Plug	Gold	500		188, 316, RG-174	6000 MHz	Gold	Brass	Snap-On	155 °C	-55 °C	Crimp	Free Hanging (In-Line)	170 V	Crimp	Beryllium Copper	MMCX	50 Ohms	Gold	1	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Huber+Suhner, Inc. 11_MMCX-50-2-1/111_OH	Male Pin, Plug	Gold	500		RG-405	6000 MHz	Gold	Brass	Snap-On	155 °C	-55 °C	Crimp	Free Hanging (In-Line)	170 V	Solder	Beryllium Copper	MMCX	50 Ohms	Gold	1	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Huber+Suhner, Inc. 11_MMCX-50-1-2/111_OH	Male Pin, Plug	Gold	500			6000 MHz	Gold	Brass	Snap-On	155 °C	-55 °C	Crimp	Free Hanging (In-Line)	170 V	Crimp	Beryllium Copper	MMCX	50 Ohms	Gold	1	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Huber+Suhner, Inc. 11_MMPX-50-2-1/111_NE	Male Pin, Plug	Gold				67 GHz	Gold	Brass	Snap-On	155 °C	-65 ░C	Solder	Free Hanging (In-Line)	170 V	Solder	Brass	MMPX	50 Ohms	Gold	1
