1-87230-3

Active

TE Connectivity AMP Connectors

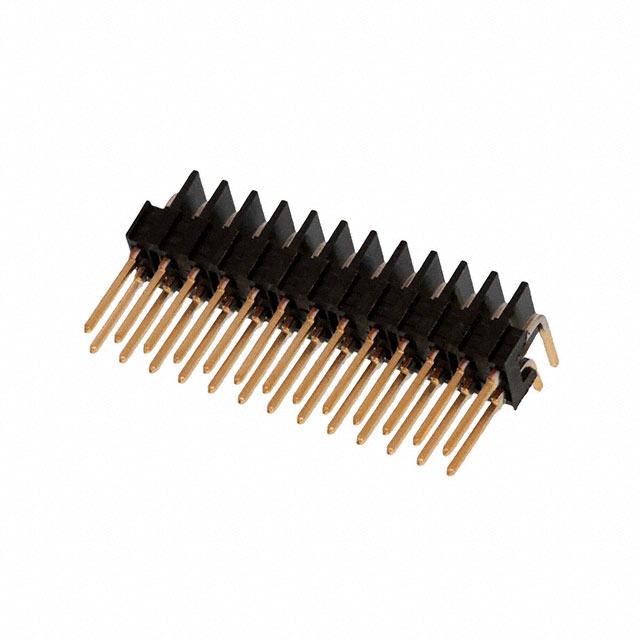

CONN HEADER R/A 26POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-87230-3

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 26POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.36
		25	$ 4.55
		100	$ 4.33

Description

General part information

87230 Series

Connector Header Through Hole, Right Angle 26 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-87230-3	87230 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Mating [x]	0.318 "	0.318 "
Contact Length - Mating [x]	8.08 mm	8.08 mm
Contact Length - Post	2.79 mm	2.79 mm
Contact Length - Post [x]	0.11 in	0.11 in
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	6.05 mm	6.05 mm
Insulation Height	0.238 in	0.238 in
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	26	4 - 80
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

87230 Series

CONN HEADER R/A 6POS 2.54MM

Part	Insulation Height	Insulation Height	Number of Positions Loaded	Insulation Material	Contact Length - Post [x]	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Shape	Contact Type	Style	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Finish - Post	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Number of Positions	Number of Rows	Shrouding	Mounting Type	Contact Finish Thickness - Post	Contact Material	Fastening Type	Connector Type	Contact Finish - Mating	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions
TE Connectivity AMP Connectors 87230-3	6.05 mm	0.238 in	All	Thermoplastic	0.11 in	2.79 mm	-65 ░C	105 ░C	3 A	Square	Male Pin	Board to Board, Cable	0.318 "	8.08 mm	Gold	Black	0.1 in	2.54 mm	15 µin	0.38 µm	UL94 V-0	6	2	Unshrouded	Through Hole, Right Angle	Flash	Phosphor Bronze	Push-Pull	Header	Gold	Solder	2.54 mm	0.1 in
TE Connectivity AMP Connectors 87230-5	6.05 mm	0.238 in	All	Thermoplastic	0.11 in	2.79 mm	-65 ░C	105 ░C	3 A	Square	Male Pin	Board to Board, Cable	0.318 "	8.08 mm	Gold	Black	0.1 in	2.54 mm	15 µin	0.38 µm	UL94 V-0	10	2	Unshrouded	Through Hole, Right Angle	Flash	Phosphor Bronze	Push-Pull	Header	Gold	Solder	2.54 mm	0.1 in
TE Connectivity AMP Connectors 87230-6	6.05 mm	0.238 in	All	Thermoplastic	0.11 in	2.79 mm	-65 ░C	105 ░C	3 A	Square	Male Pin	Board to Board, Cable	0.318 "	8.08 mm	Gold	Black	0.1 in	2.54 mm	15 µin	0.38 µm	UL94 V-0	12	2	Unshrouded	Through Hole, Right Angle	Flash	Phosphor Bronze	Push-Pull	Header	Gold	Solder	2.54 mm	0.1 in
TE Connectivity AMP Connectors 87230-9	6.05 mm	0.238 in	All	Thermoplastic	0.11 in	2.79 mm	-65 ░C	105 ░C	3 A	Square	Male Pin	Board to Board, Cable	0.318 "	8.08 mm	Gold	Black	0.1 in	2.54 mm	15 µin	0.38 µm	UL94 V-0	18	2	Unshrouded	Through Hole, Right Angle	Flash	Phosphor Bronze	Push-Pull	Header	Gold	Solder	2.54 mm	0.1 in
TE Connectivity AMP Connectors 1-87230-2	6.05 mm	0.238 in	All	Thermoplastic	0.11 in	2.79 mm	-65 ░C	105 ░C	3 A	Square	Male Pin	Board to Board, Cable	0.318 "	8.08 mm	Gold	Black	0.1 in	2.54 mm	15 µin	0.38 µm	UL94 V-0	24	2	Unshrouded	Through Hole, Right Angle	Flash	Phosphor Bronze	Push-Pull	Header	Gold	Solder	2.54 mm	0.1 in
TE Connectivity AMP Connectors 3-87230-0	6.05 mm	0.238 in	All	Thermoplastic	0.11 in	2.79 mm	-65 ░C	105 ░C	3 A	Square	Male Pin	Board to Board, Cable	0.318 "	8.08 mm	Gold	Black	0.1 in	2.54 mm	15 µin	0.38 µm	UL94 V-0	60	2	Unshrouded	Through Hole, Right Angle	Flash	Phosphor Bronze	Push-Pull	Header	Gold	Solder	2.54 mm	0.1 in
TE Connectivity AMP Connectors 87230-8	6.05 mm	0.238 in	All	Thermoplastic	0.11 in	2.79 mm	-65 ░C	105 ░C	3 A	Square	Male Pin	Board to Board, Cable	0.318 "	8.08 mm	Gold	Black	0.1 in	2.54 mm	15 µin	0.38 µm	UL94 V-0		2	Unshrouded	Through Hole, Right Angle	Flash	Phosphor Bronze	Push-Pull	Header	Gold	Solder	2.54 mm	0.1 in	16
TE Connectivity AMP Connectors 3-87230-5	6.05 mm	0.238 in	All	Thermoplastic	0.11 in	2.79 mm	-65 ░C	105 ░C	3 A	Square	Male Pin	Board to Board, Cable	0.318 "	8.08 mm	Gold	Black	0.1 in	2.54 mm	15 µin	0.38 µm	UL94 V-0	70	2	Unshrouded	Through Hole, Right Angle	Flash	Phosphor Bronze	Push-Pull	Header	Gold	Solder	2.54 mm	0.1 in
TE Connectivity AMP Connectors 1-87230-3	6.05 mm	0.238 in	All	Thermoplastic	0.11 in	2.79 mm	-65 ░C	105 ░C	3 A	Square	Male Pin	Board to Board, Cable	0.318 "	8.08 mm	Gold	Black	0.1 in	2.54 mm	15 µin	0.38 µm	UL94 V-0	26	2	Unshrouded	Through Hole, Right Angle	Flash	Phosphor Bronze	Push-Pull	Header	Gold	Solder	2.54 mm	0.1 in
