140791-2

Active

TE Connectivity AMP Connectors

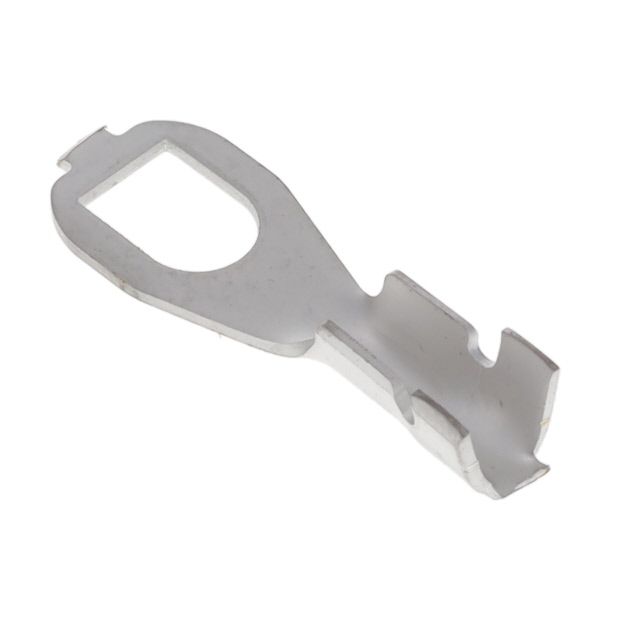

CONN SPADE TERM 13-18AWG

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SPADE TERM 13-18AWG

Technical Specifications

Parameters and characteristics for this part

Specification	140791-2

Contact Finish	Tin
Contact Material	Brass
Insulation	Non-Insulated
Insulation Diameter [Max] [diameter]	0.137 "
Insulation Diameter [Max] [diameter]	3.48 mm
Insulation Diameter [Min] [diameter]	0.098 in
Insulation Diameter [Min] [diameter]	2.5 mm
Length - Overall [x]	0.795 in
Length - Overall [x]	20.19 mm
Length - Ring Center to Termination	7.92 mm
Length - Ring Center to Termination [x]	0.312 in
Length - Termination	7.49 mm
Length - Termination [x]	0.295 in
Mounting Type	Free Hanging (In-Line)
Terminal Type	Standard
Termination	Crimp
Tongue Inside Opening [x]	0.171 in
Tongue Inside Opening [x]	4.34 mm
Width - Outer Edges [x]	0.295 in
Width - Outer Edges [x]	7.49 mm
Wire Gauge [Max]	18 AWG
Wire Gauge [Min]	13 AWG

CONN SPADE TERM 13-18AWG

Part	Mounting Type	Length - Ring Center to Termination	Length - Ring Center to Termination [x]	Insulation	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Contact Material	Wire Gauge [Min]	Wire Gauge [Max]	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Length - Termination	Length - Termination [x]	Width - Outer Edges [x]	Width - Outer Edges [x]	Contact Finish	Termination	Terminal Type	Length - Overall [x]	Length - Overall [x]
TE Connectivity AMP Connectors 140791-2	Free Hanging (In-Line)	7.92 mm	0.312 in	Non-Insulated	0.098 in	0.137 "	3.48 mm	2.5 mm	Brass	13 AWG	18 AWG	0.171 in	4.34 mm	7.49 mm	0.295 in	0.295 in	7.49 mm	Tin	Crimp	Standard	0.795 in	20.19 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Spade Terminal Connector Crimp 13-18 AWG
