7126W 003250

Active

Belden Inc.

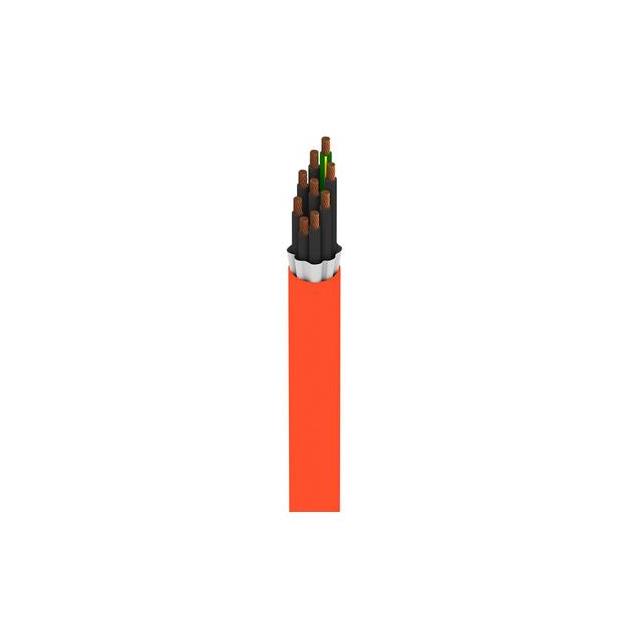

CABLE 9COND 16AWG ORANGE

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 9COND 16AWG ORANGE

Technical Specifications

Parameters and characteristics for this part

Specification	7126W 003250

Cable Type	Multi-Conductor
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	168
Conductor Strand [custom]	38 AWG
Features	Oil Resistant, UV Resistant
Jacket (Insulation) Diameter [diameter]	14.25 mm
Jacket (Insulation) Diameter [diameter]	0.561 in
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket (Insulation) Thickness	1.6 mm
Jacket (Insulation) Thickness	0.063 in
Jacket Color	Orange
Length	3000 "
Length	76.2 m
Number of Conductors	9
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-50 °C
Ratings	UL Style 20328
Wire Gauge	16 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Number of Conductors	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Insulation	Wire Gauge	Cable Type	Features	Jacket Color
Belden Inc. 7126W 003250	1.6 mm	0.063 in	UL Style 20328	9	Copper Bare	14.25 mm	0.561 in	168	38 AWG	Thermoplastic Elastomer (TPE)	3000 "	76.2 m	90 °C	-50 °C	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	16 AWG	Multi-Conductor	Oil Resistant UV Resistant	Orange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	250	$ 21.60

General part information

9 Conductor Multi-Conductor Cable Orange 16 AWG 250.0' (76.2m)
