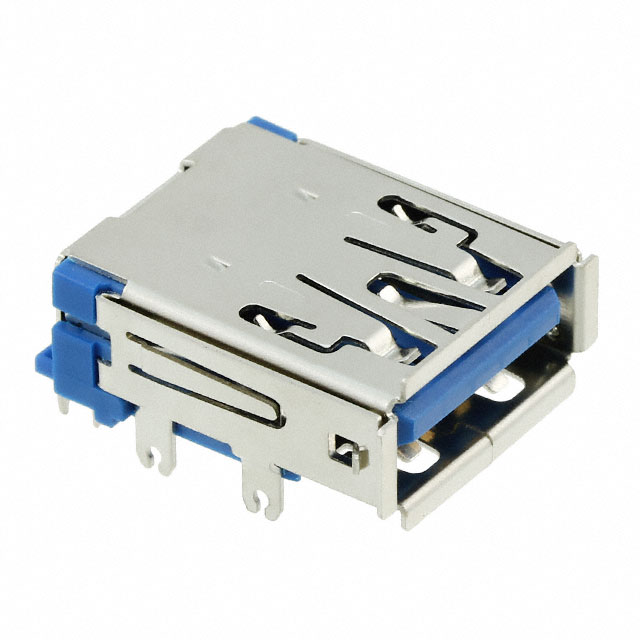

AUSB1-AFN-BTP1
ActiveAssmann WSW Components
CONN RCPT USB3.2 TYPEA 11POS RA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AUSB1-AFN-BTP1
ActiveAssmann WSW Components
CONN RCPT USB3.2 TYPEA 11POS RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AUSB1-AFN-BTP1 |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.8 A |
| Gender | Receptacle |
| Insulation Color | Blue |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Right Angle |
| Number of Contacts [custom] | 11 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Shell/Shielding Material | Steel |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.74 | |
| 10 | $ 1.52 | |||
| 25 | $ 1.45 | |||
| 40 | $ 1.42 | |||
| 100 | $ 1.36 | |||
| 300 | $ 1.23 | |||
| 500 | $ 1.14 | |||
Description
General part information
AUSB1-AF Series
USB-A (USB TYPE-A) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 11 Position Through Hole, Right Angle
