SML-LXR44SYC-TR

Active

Lumex Opto/Components Inc.

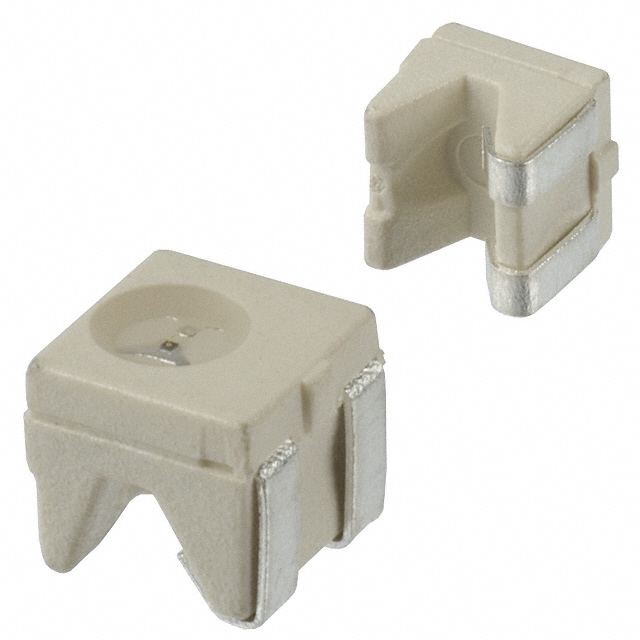

LED YELLOW CLR BOOMERANG SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SML-LXR44SYC-TR

Active

Lumex Opto/Components Inc.

LED YELLOW CLR BOOMERANG SMD R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SML-LXR44SYC-TR	SML-LXR44 Series

Color	Yellow	Yellow, Red, Green, Blue
Configuration	Standard	Standard, Bidirectional, Independent
Current - Test	20 mA	20 mA
Height (Max) [Max] [z]	4 mm	4 mm
Lens Color	Colorless	Colorless
Lens Size [diameter]	2.4 mm	2.4 mm
Lens Style	-	Round with Domed Top
Lens Transparency	Clear	Clear
Millicandela Rating	200 mcd	9 - 210 mcd
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle, Surface Mount
Package / Case	2-SMD, Boomerang	2-SMD, Boomerang
Size / Dimension [x]	4 mm	4 mm
Size / Dimension [y]	3.6 mm	3.6 mm
Supplier Device Package	Boomerang	Boomerang
Viewing Angle	-	120 °
Viewing Angle [custom]	90 °	90 °
Voltage - Forward (Vf) (Typ)	2 V	1.7 - 3.5 V
Wavelength - Peak	590 nm	525 - 660 nm
Wavelength - Peak	-	660 nm
Wavelength - Peak	-	574 nm

SML-LXR44 Series

LED YELLOW CLR BOOMERANG SMD R/A

Part	Mounting Type	Package / Case	Lens Size [diameter]	Configuration	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Lens Transparency	Current - Test	Viewing Angle [custom]	Millicandela Rating	Color	Supplier Device Package	Lens Color	Height (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Lens Style	Viewing Angle	Wavelength - Peak [custom]	Wavelength - Peak [custom]
Lumex Opto/Components Inc. SML-LXR44YC-TR	Surface Mount, Right Angle	2-SMD, Boomerang	2.4 mm	Standard	2.1 V	585 nm	Clear	20 mA	90 °	9 mcd	Yellow	Boomerang	Colorless	4 mm	4 mm	3.6 mm
Lumex Opto/Components Inc. SML-LXR44SRSUGC-TR	Surface Mount, Right Angle	2-SMD, Boomerang	2.4 mm	Bidirectional	1.85 V, 2.1 V		Clear	20 mA, 20 mA		90 mcd, 200 mcd	Green, Red	Boomerang	Colorless	4 mm	4 mm	3.6 mm	Round with Domed Top	120 °	660 nm	574 nm
Lumex Opto/Components Inc. SML-LXR44SYC-TR	Surface Mount, Right Angle	2-SMD, Boomerang	2.4 mm	Standard	2 V	590 nm	Clear	20 mA	90 °	200 mcd	Yellow	Boomerang	Colorless	4 mm	4 mm	3.6 mm
Lumex Opto/Components Inc. SML-LXR44SIC-TR	Surface Mount, Right Angle	2-SMD, Boomerang	2.4 mm	Standard	2 V	636 nm	Clear	20 mA	90 °	170 mcd	Red	Boomerang	Colorless	4 mm	4 mm	3.6 mm
Lumex Opto/Components Inc. SML-LXR44SUGC-TR	Surface Mount, Right Angle	2-SMD, Boomerang	2.4 mm	Standard	2.2 V		Clear	20 mA	90 °	210 mcd	Green	Boomerang	Colorless	4 mm	4 mm	3.6 mm
Lumex Opto/Components Inc. SML-LXR44UPGC-TR	Surface Mount	2-SMD, Boomerang	2.4 mm	Independent	3.5 V	525 nm	Clear	20 mA		150 mcd	Green	Boomerang	Colorless	4 mm	4 mm	3.6 mm	Round with Domed Top	120 °
Lumex Opto/Components Inc. SML-LXR44GC-TR	Surface Mount, Right Angle	2-SMD, Boomerang	2.4 mm	Standard	2.2 V	565 nm	Clear	20 mA	90 °	25 mcd	Green	Boomerang	Colorless	4 mm	4 mm	3.6 mm
Lumex Opto/Components Inc. SML-LXR44USBC-TR	Surface Mount	2-SMD, Boomerang	2.4 mm	Independent	3.5 V		Clear	20 mA		170 mcd	Blue	Boomerang	Colorless	4 mm	4 mm	3.6 mm	Round with Domed Top	120 °
Lumex Opto/Components Inc. SML-LXR44IC-TR	Surface Mount, Right Angle	2-SMD, Boomerang	2.4 mm	Standard	2 V	635 nm	Clear	20 mA	90 °	25 mcd	Red	Boomerang	Colorless	4 mm	4 mm	3.6 mm
Lumex Opto/Components Inc. SML-LXR44SRC-TR	Surface Mount, Right Angle	2-SMD, Boomerang	2.4 mm	Standard	1.7 V	660 nm	Clear	20 mA	90 °	80 mcd	Red	Boomerang	Colorless	4 mm	4 mm	3.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.22
		10	$ 0.75
		100	$ 0.52
	Digi-Reel®	1	$ 1.22
		10	$ 0.75
		100	$ 0.52
	Tape & Reel (TR)	500	$ 0.43
		1000	$ 0.40
		1500	$ 0.38
		2500	$ 0.37
		3500	$ 0.36
		5000	$ 0.35
		12500	$ 0.33
		25000	$ 0.32

Description

General part information

SML-LXR44 Series

Yellow LED Indication - Discrete 2V 2-SMD, Boomerang
