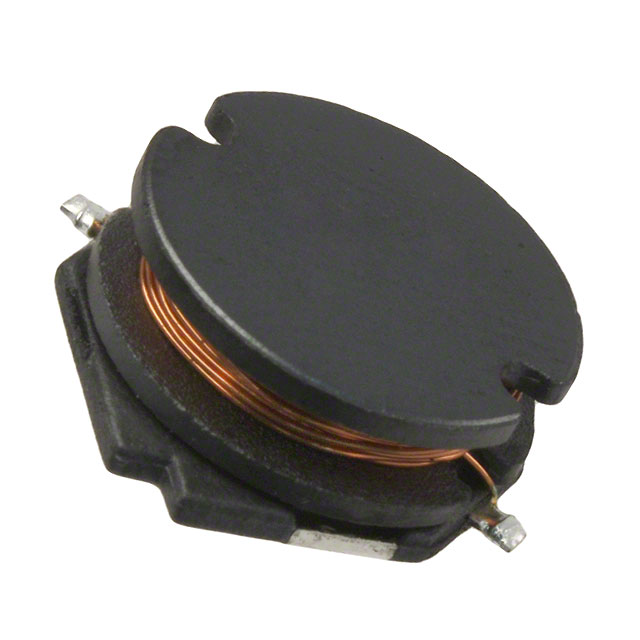

SDR1305-471K

Active

Bourns Inc.

INDUCTOR POWER UNSHIELDED WIREWOUND 470UH 10% 100KHZ 14Q-FACTOR FERRITE 0.67A 1.15OHM DCR T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SDR1305-471K

Active

Bourns Inc.

INDUCTOR POWER UNSHIELDED WIREWOUND 470UH 10% 100KHZ 14Q-FACTOR FERRITE 0.67A 1.15OHM DCR T/R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDR1305-471K

Current - Saturation (Isat)	700 mA
Current Rating (Amps)	0.67 A
DC Resistance (DCR) [Max]	1.15 Ohm
Frequency - Self Resonant	4 MHz
Height - Seated (Max) [Max] [z]	5.1 mm
Height - Seated (Max) [Max] [z]	0.201 in
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Q @ Freq	14, 796 kHz
Shielding	Unshielded
Tolerance	10 %
Type	Wirewound, Drum Core

SDR1305 Series

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Mounting Type	DC Resistance (DCR) [Max]	Material - Core	Current Rating (Amps)	Tolerance	Type	Inductance	Q @ Freq	Operating Temperature [Max]	Operating Temperature [Min]	Current - Saturation (Isat)	Inductance Frequency - Test	Shielding	Frequency - Self Resonant
Bourns Inc. SDR1305-151K	5.1 mm	0.201 in	Nonstandard	Surface Mount	380 mOhm	Ferrite	1.2 A	10 %	Drum Core Wirewound	150 µH	17 796 kHz	125 °C	-40 °C	1.15 A	100 kHz	Unshielded	8 MHz
Bourns Inc. SDR1305-221K	5.1 mm	0.201 in	Nonstandard	Surface Mount	500 mOhm	Ferrite	1 A	10 %	Drum Core Wirewound	220 µH	16 796 kHz	125 °C	-40 °C	950 mA	100 kHz	Unshielded	7 MHz
Bourns Inc. SDR1305-331K	5.1 mm	0.201 in	Nonstandard	Surface Mount	700 mOhm	Ferrite	0.85 A	10 %	Drum Core Wirewound	330 µH	11 796 kHz	125 °C	-40 °C	800 mA	100 kHz	Unshielded	6 MHz
Bourns Inc. SDR1305-471K	5.1 mm	0.201 in	Nonstandard	Surface Mount	1.15 Ohm	Ferrite	0.67 A	10 %	Drum Core Wirewound		14 796 kHz	125 °C	-40 °C	700 mA	100 kHz	Unshielded	4 MHz
Bourns Inc. SDR1305-681K	5.1 mm	0.201 in	Nonstandard	Surface Mount	1.4 Ohm	Ferrite	600 mA	10 %	Drum Core Wirewound	680 µH	12 796 kHz	125 °C	-40 °C	580 mA	100 kHz	Unshielded	3.5 MHz
Bourns Inc. SDR1305-102K	5.1 mm	0.201 in	Nonstandard	Surface Mount	2.35 Ohm	Ferrite	460 mA	10 %	Drum Core Wirewound	1 mH	41 252 kHz	125 °C	-40 °C	470 mA	100 kHz	Unshielded	2.7 MHz
Bourns Inc. SDR1305-4R6Y	5.1 mm	0.201 in	Nonstandard	Surface Mount	16.5 mOhm	Ferrite	5.2 A	25 %	Drum Core Wirewound	4.6 µH	7.96 MHz 18	125 °C	-40 °C	6 A	100 kHz	Unshielded	35 MHz
Bourns Inc. SDR1305-100M	5.1 mm	0.201 in	Nonstandard	Surface Mount	37 mOhm	Ferrite	3.6 A	20 %	Drum Core Wirewound	10 µH	2.52 MHz 35	125 °C	-40 °C	4.4 A	100 kHz	Unshielded	27 MHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1200	$ 0.42
Newark	Each (Supplied on Full Reel)	1000	$ 0.46
		2000	$ 0.42
		4000	$ 0.38
		6000	$ 0.36
		10000	$ 0.36

Description

General part information

SDR1305 Series

470 µH Unshielded Drum Core, Wirewound Inductor 670 mA 1.15Ohm Max Nonstandard
