1-1102570-1
ActiveTE Connectivity AMP Connectors

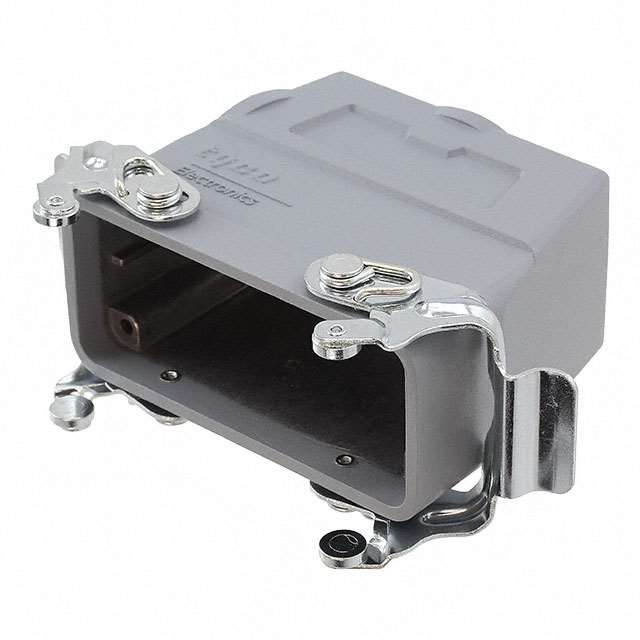

CONN HOOD TOP ENTRY SZ6 PG21
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1102570-1
ActiveTE Connectivity AMP Connectors
CONN HOOD TOP ENTRY SZ6 PG21
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1102570-1 |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Material | Aluminum |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Hood |
| Size | 6 |
| Size / Dimension [x] | 3.681 " |
| Size / Dimension [x] | 93.5 mm |
| Size / Dimension [y] | 1.693 in |
| Size / Dimension [y] | 43 mm |
| Size / Dimension [z] | 76 mm |
| Size / Dimension [z] | 2.992 in |
| Style | Top Entry |
| Thread Size | PG21 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1102570 Series
CONN HOOD TOP ENTRY SZ6 PG21
| Part | Ingress Protection | Lock Location | Size | Housing Material | Housing Color | Thread Size | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Connector Type | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-1102570-1 | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Hood | 6 | Aluminum | Gray | PG21 | 3.681 " | 1.693 in | 43 mm | 93.5 mm | 76 mm | 2.992 in | Hood | Top Entry |
Description
General part information
1102570 Series
Hood Connector Top Entry PG21 6 IP65 - Dust Tight, Water Resistant
