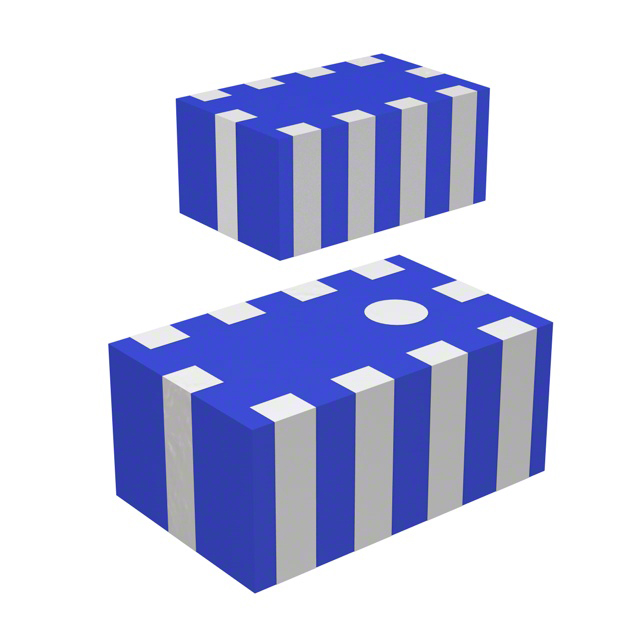

RFBLN2012090BM5T25

Active

Walsin Technology Corporation

BALUN 800MHZ-1.9GHZ 50/200 10SMD

Search across all available documentation for this part.

Active

Walsin Technology Corporation

BALUN 800MHZ-1.9GHZ 50/200 10SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RFBLN2012090BM5T25	RFBLN2012 Series

Frequency Range [Max]	1.9 GHz	1.9 - 5.9 GHz
Frequency Range [Min]	800 MHz	2.4 - 800 GHz
Impedance - Unbalanced/Balanced	200 Ohm, 50 Ohm	50 - 200 Ohm
Impedance - Unbalanced/Balanced	-	50 Ohm
Impedance - Unbalanced/Balanced	-	50
Insertion Loss (Max) [Max]	1.6 dB	1 - 1.6 dB
Mounting Type	Surface Mount	Surface Mount
Package / Case	10-SMD, No Lead	0805 (2012 Metric), 10-SMD, No Lead
Package / Case	-	6 Leads
Phase Difference	180 °	180 °
Return Loss (Min) [Min]	10 dB	10 dB

BALUN

Part	Insertion Loss (Max) [Max]	Impedance - Unbalanced/Balanced	Frequency Range [Max]	Frequency Range [Min]	Mounting Type	Return Loss (Min) [Min]	Package / Case	Package / Case	Impedance - Unbalanced/Balanced [custom]	Impedance - Unbalanced/Balanced [custom]	Phase Difference
Walsin Technology Corporation RFBLN2012090K1T	1.2 dB	50 Ohm, 100 Ohm	5.9 GHz	4.9 GHz	Surface Mount	10 dB	0805 (2012 Metric)	6 Leads
Walsin Technology Corporation RFBLN2012090A0T	1 dB		2.5 GHz	2.4 GHz	Surface Mount	10 dB	0805 (2012 Metric)	6 Leads	50 Ohm	50	180 °
Walsin Technology Corporation RFBLN2012090BM5T25	1.6 dB	50 Ohm, 200 Ohm	1.9 GHz	800 MHz	Surface Mount	10 dB	10-SMD, No Lead				180 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.21
	Digi-Reel®	1	$ 0.21
	Tape & Reel (TR)	2000	$ 0.07

General part information

RF Balun 800MHz ~ 1.9GHz 50 / 200Ohm 10-SMD, No Lead
