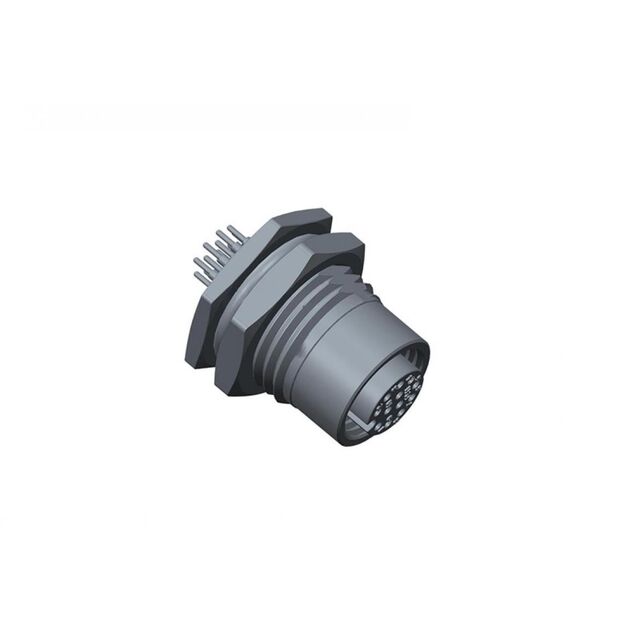

MSAS-12PFFP-SF8001

Active

Amphenol LTW

M12 PANEL PCB SHIELD CONN

Search across all available documentation for this part.

Active

Amphenol LTW

M12 PANEL PCB SHIELD CONN

Technical Specifications

Parameters and characteristics for this part

Specification	MSAS-12PFFP-SF8001

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	1.5 A
Features	Ground
Ingress Protection	IP68, IP69K
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-12
Shielding	Shielded
Termination	Solder
Voltage Rating	30 VDC

Part	Shielding	Color	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Connector Type	Primary Material	Termination	Shell Material	Features	Mounting Feature	Shell Finish	Insert Material	Number of Positions	Ingress Protection	Contact Material	Orientation	Voltage Rating	Current Rating (Amps)	Mounting Type
Amphenol LTW MSAS-12PFFP-SF8001	Shielded	Silver	Gold	-40 °C	105 ░C	M12-12	Female Sockets Plug	Metal	Solder	Zinc Alloy	Ground	Bulkhead - Front Side Nut	Nickel	Polyamide (PA) Nylon Glass Filled	12	IP68 IP69K	Copper Alloy	A	30 VDC	1.5 A	Panel Mount Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Plug, Female Sockets Solder
