AA2810ASYS/J3

Active

Kingbright

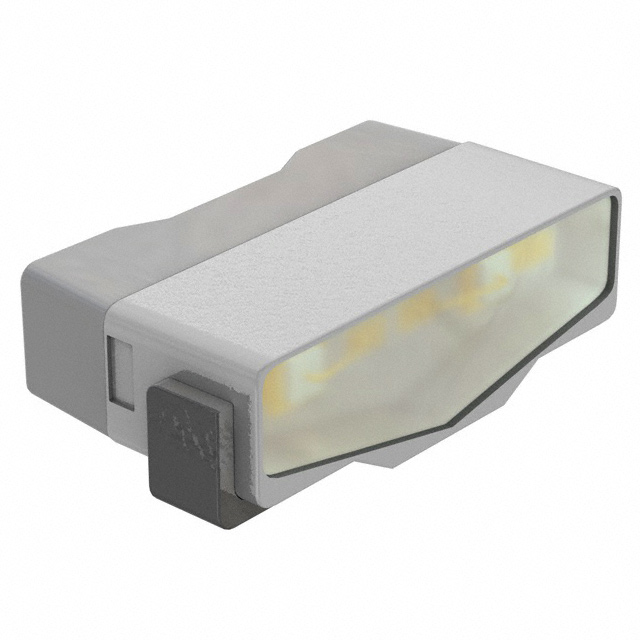

LED YELLOW CLEAR SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AA2810ASYS/J3

Active

Kingbright

LED YELLOW CLEAR SMD R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.72
		10	$ 0.47
		100	$ 0.31
		1000	$ 0.24
	Digi-Reel®	1	$ 0.72
		10	$ 0.47
		100	$ 0.31
		1000	$ 0.24
	Tape & Reel (TR)	2000	$ 0.23
		6000	$ 0.22
		10000	$ 0.21

Description

General part information

AA2810 Series

Yellow 590nm LED Indication - Discrete 2V 2-SMD, J-Lead

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AA2810ASYS/J3	AA2810 Series

Color	Yellow	Red, Yellow, Green, Blue
Configuration	Standard	Independent, Standard
Current - Test	20 mA	20 mA
Height (Max)	-	0.8 mm
Height (Max) [Max]	0.9 mm	0.9 mm
Lens Color	Colorless	Colorless
Lens Size [x]	2.3 mm	2.3 mm
Lens Size [y]	0.57 mm	0.57 mm
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top
Lens Transparency	Clear	Clear
Millicandela Rating	600 mcd	60 - 1600 mcd
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Package / Case	2-SMD, J-Lead	2-SMD, J-Lead
Size / Dimension [x]	2.5 mm	2.5 - 2.8 mm
Size / Dimension [y]	1.2 mm	1.2 mm
Supplier Device Package	SMD	2-SMD, SMD, Chip LED
Viewing Angle	110 °	110 °
Voltage - Forward (Vf) (Typ)	2 V	1.95 - 3.3 V
Wavelength - Dominant	590 nm	465 - 630 nm
Wavelength - Peak	590 nm	460 - 645 nm
Wavelength - Peak	-	640 nm

AA2810 Series

LED RED CLEAR 2SMD R/A

Part	Lens Style	Millicandela Rating	Height (Max) [Max]	Mounting Type	Lens Color	Voltage - Forward (Vf) (Typ)	Configuration	Supplier Device Package	Wavelength - Dominant	Wavelength - Peak [custom]	Size / Dimension [y]	Size / Dimension [x]	Color	Package / Case	Viewing Angle	Current - Test	Lens Transparency	Lens Size [x]	Lens Size [y]	Wavelength - Peak	Height (Max) [Max] [z]
Kingbright AA2810ASESK/J3	Rectangle with Flat Top	1600 mcd	0.9 mm	Surface Mount, Right Angle	Colorless	2.2 V	Independent	2-SMD	625 nm	640 nm	1.2 mm	2.5 mm	Red	2-SMD, J-Lead	110 °	20 mA	Clear	2.3 mm	0.57 mm
Kingbright AA2810ASESK	Rectangle with Flat Top	250 mcd	0.9 mm	Surface Mount, Right Angle	Colorless	2.1 V	Standard	SMD	601 nm		1.2 mm	2.5 mm		2-SMD, J-Lead	110 °	20 mA	Clear	2.3 mm	0.57 mm	610 nm
Kingbright AA2810ASYS/J3	Rectangle with Flat Top	600 mcd	0.9 mm	Surface Mount, Right Angle	Colorless	2 V	Standard	SMD	590 nm		1.2 mm	2.5 mm	Yellow	2-SMD, J-Lead	110 °	20 mA	Clear	2.3 mm	0.57 mm	590 nm
Kingbright AA2810AZGS	Rectangle with Flat Top	700 mcd		Surface Mount, Right Angle	Colorless	3.3 V	Standard	SMD	525 nm		1.2 mm	2.8 mm	Green	2-SMD, J-Lead	110 °	20 mA	Clear	2.3 mm	0.57 mm	515 nm	0.8 mm
Kingbright AA2810AZGSK	Rectangle with Flat Top	600 mcd		Surface Mount, Right Angle	Colorless	3.3 V	Standard	Chip LED	525 nm		1.2 mm	2.8 mm	Green	2-SMD, J-Lead	110 °	20 mA	Clear	2.3 mm	0.57 mm	515 nm	0.8 mm
Kingbright AA2810AQBS/D	Rectangle with Flat Top	150 mcd		Surface Mount, Right Angle	Colorless	3.3 V	Standard	Chip LED	465 nm		1.2 mm	2.8 mm	Blue	2-SMD, J-Lead	110 °	20 mA	Clear	2.3 mm	0.57 mm	460 nm	0.8 mm
Kingbright AA2810ASYSK/J3	Rectangle with Flat Top	550 mcd	0.9 mm	Surface Mount, Right Angle	Colorless	2 V	Independent	2-SMD	590 nm		1.2 mm	2.5 mm	Yellow	2-SMD, J-Lead	110 °	20 mA	Clear	2.3 mm	0.57 mm	590 nm
Kingbright AA2810ACGSK	Rectangle with Flat Top	60 mcd		Surface Mount, Right Angle	Colorless	2.1 V	Standard	Chip LED	570 nm		1.2 mm	2.8 mm	Green	2-SMD, J-Lead	110 °	20 mA	Clear	2.3 mm	0.57 mm		0.8 mm
Kingbright AA2810ASURSK	Rectangle with Flat Top	100 mcd	0.9 mm	Surface Mount, Right Angle	Colorless	1.95 V	Standard	Chip LED	630 nm		1.2 mm	2.5 mm	Red	2-SMD, J-Lead	110 °	20 mA	Clear	2.3 mm	0.57 mm	645 nm
Kingbright AA2810ASES/J3	Rectangle with Flat Top	550 mcd	0.9 mm	Surface Mount, Right Angle	Colorless	2.2 V	Standard	Chip LED	625 nm	640 nm	1.2 mm	2.5 mm	Red	2-SMD, J-Lead	110 °	20 mA	Clear	2.3 mm	0.57 mm
