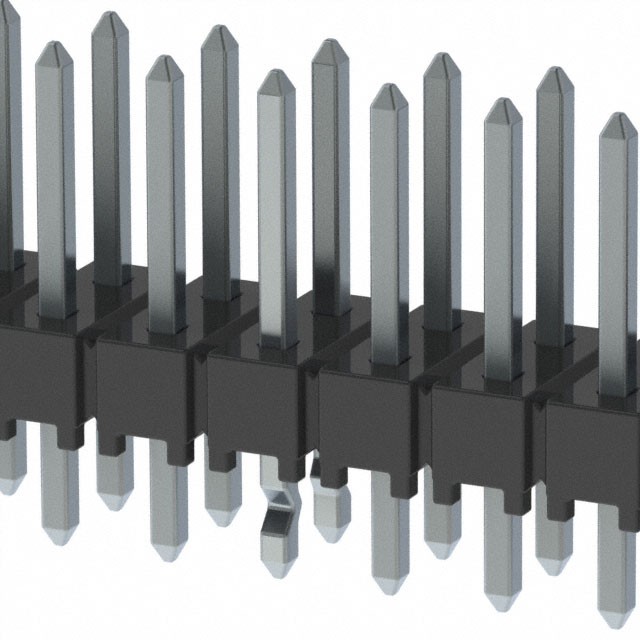

HTSW-148-07-T-D-LL

Active

Samtec Inc.

CONN HEADER VERT 96POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

HTSW-148-07-T-D-LL

Active

Samtec Inc.

CONN HEADER VERT 96POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HTSW-148-07-T-D-LL

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Push-Pull
Insulation Color	Natural
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	96
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.43 in
Overall Contact Length	10.92 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Kinked Pin, Solder

HTSW-148 Series

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Number of Positions	Contact Shape	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Type	Number of Rows	Termination	Contact Length - Post [x]	Contact Length - Post	Mounting Type	Shrouding	Number of Positions Loaded	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Height	Insulation Height	Contact Finish - Post	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Material Flammability Rating	Insulation Material	Insulation Color	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post
Samtec Inc. HTSW-148-15-F-D-LL	2.54 mm	0.1 in	Phosphor Bronze	96	Square	13.21 mm	0.52 in	Male Pin	2	Kinked Pin Solder	0.11 in	2.79 mm	Through Hole	Unshrouded	All	Board to Board Cable	3 µin	0.076 µm	0.1 in	2.54 mm	Push-Pull	-55 °C	125 °C	Header	0.1 in	2.54 mm	Tin	0.73 in	18.54 mm	Varies by Wire Gauge	UL94 V-0	Liquid Crystal Polymer (LCP)	Natural	Gold
Samtec Inc. HTSW-148-08-F-D	2.54 mm	0.1 in	Phosphor Bronze	96	Square		0.23 in	Male Pin	2	Solder	0.2 in		Through Hole	Unshrouded	All	Board to Board Cable	3 µin	0.076 µm	0.1 in	2.54 mm	Push-Pull	-55 °C	125 °C	Header	0.1 in	2.54 mm	Tin	0.53 in	13.46 mm	Varies by Wire Gauge	UL94 V-0	Liquid Crystal Polymer (LCP)	Natural	Gold	5.08 mm	5.84 mm
Samtec Inc. HTSW-148-29-G-D	2.54 mm	0.1 in	Phosphor Bronze	96	Square			Male Pin	2	Solder		23.11 mm	Through Hole	Unshrouded	All	Board to Board Cable	10 çin	0.25 çm	0.1 in	2.54 mm	Push-Pull	-55 °C	125 °C	Header	0.1 in	2.54 mm	Gold	1.33 in	33.78 mm	Varies by Wire Gauge	UL94 V-0	Liquid Crystal Polymer (LCP)	Natural	Gold		8.13 mm	0.32 in	3 µin	0.076 µm	0.91 in
Samtec Inc. HTSW-148-16-G-D
Samtec Inc. HTSW-148-07-T-D-LL	2.54 mm	0.1 in	Phosphor Bronze	96	Square		0.23 in	Male Pin	2	Kinked Pin Solder		2.54 mm	Through Hole	Unshrouded	All	Board to Board Cable			0.1 in	2.54 mm	Push-Pull	-55 °C	105 ░C	Header	0.1 in	2.54 mm	Tin	0.43 in	10.92 mm	Varies by Wire Gauge	UL94 V-0	Liquid Crystal Polymer (LCP)	Natural			5.84 mm				0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.78

Description

General part information

HTSW-148 Series

Connector Header Through Hole 96 position 0.100" (2.54mm)
