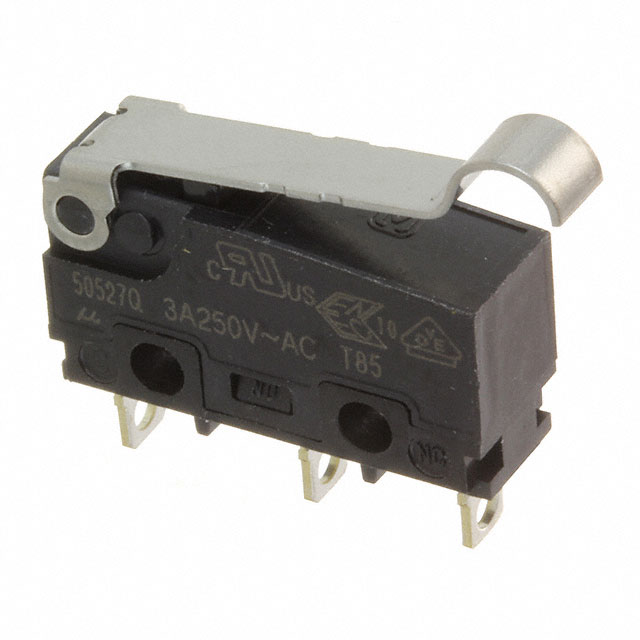

AVT3242613
ActivePanasonic Electric Works
SWITCH SNAP ACT SPDT 0.1A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsHow to Read Date Codes
AVT3242613
ActivePanasonic Electric Works
SWITCH SNAP ACT SPDT 0.1A 125V
Deep-Dive with AI
DocumentsHow to Read Date Codes
Technical Specifications
Parameters and characteristics for this part
| Specification | AVT3242613 |
|---|---|
| Actuator Type | Simulated Roller, Lever |
| Circuit | SPDT |
| Current Rating (Amps) | 100 mA |
| Differential Travel | 0.8 mm |
| Differential Travel | 0.031 " |
| Electrical Life | 200000 Cycles |
| Mechanical Life | 500000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 16 gf |
| Operating Position | 11.7 mm |
| Operating Position | 0.46 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 1.2 mm |
| Overtravel | 0.047 " |
| Pretravel | 0.11 in |
| Pretravel | 2.8 mm |
| Release Force | 1.53 gf |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 1.16 | |
Description
General part information
AVT324 Series
Switch SPDT Chassis Mount
