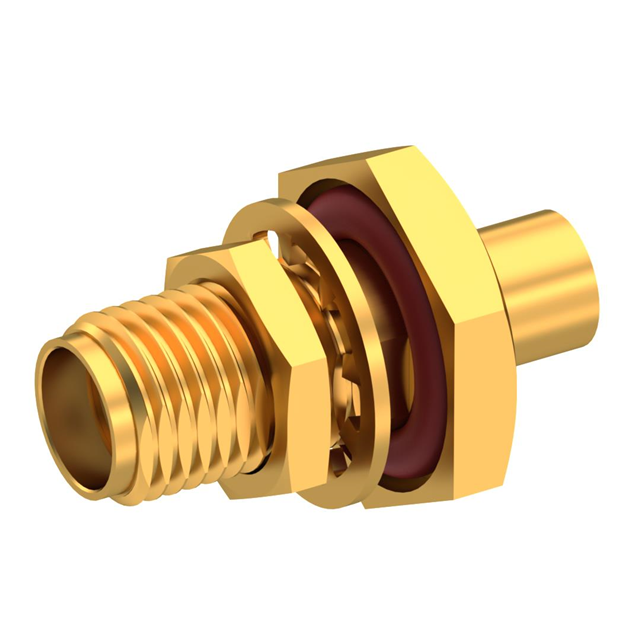

Specification	9453-1583-009

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	RG-402
Cable Group Diameter (Semi Rigid)	0.141 in
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Jack, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	18 GHz
Housing Color	Gold
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder
Voltage Rating	500 V

9453-1583 Series

Part	Mounting Feature	Mounting Type	Impedance	Center Contact Material	Fastening Type	Cable Group Diameter (Semi Rigid)	Cable Group	Connector Style	Shield Termination	Contact Termination	Housing Color	Connector Type	Frequency - Max	Number of Ports	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Mating Cycles	Body Finish	Center Contact Plating	Voltage Rating	Body Material	Includes Total Count	Includes
Radiall USA, Inc. 9453-1583-009	Bulkhead Front Side Nut	Panel Mount	50 Ohm	Beryllium Copper	Threaded	0.141 in	RG-402	SMA	Solder	Solder	Gold	Female Socket Jack	18 GHz	1	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	500 cycles	Gold	Gold	500 V	Stainless Steel
Radiall USA, Inc. 9453-1583-010	Bulkhead Front Side Nut	Panel Mount	50 Ohm	Beryllium Copper	Threaded	0.085 in	RG-405	SMA	Solder	Solder	Gold	Female Socket Jack	18 GHz	1	-65 °C	105 °C	Polytetrafluoroethylene (PTFE)	500 cycles	Gold	Gold	350 V	Stainless Steel	3 pcs	Connector Lockwasher Nut
