SA1E-TN1-2M

Active

IDEC Corporation

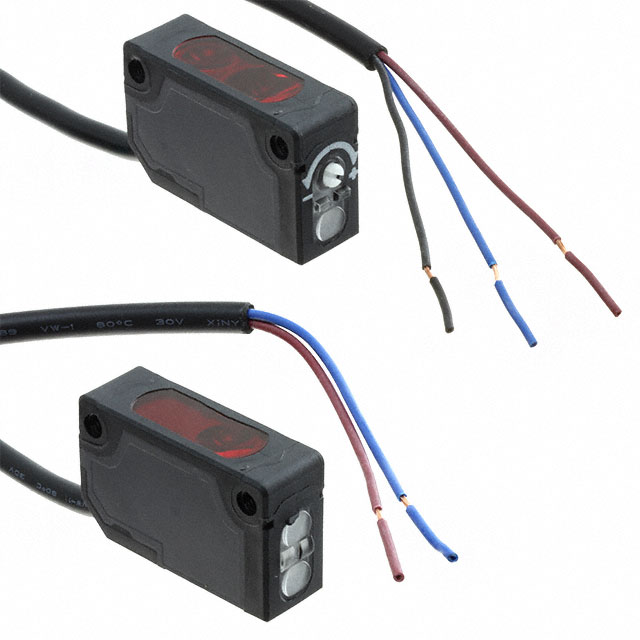

PHOTOELECTRIC SENSOR, DATASENSOR, SA1E SERIES, 20 M, THROUGH-BEAM, NPN, 10 V TO 30 V

Search across all available documentation for this part.

Active

IDEC Corporation

PHOTOELECTRIC SENSOR, DATASENSOR, SA1E SERIES, 20 M, THROUGH-BEAM, NPN, 10 V TO 30 V

Technical Specifications

Parameters and characteristics for this part

PHOTOELECTRIC SENSOR, DATASENSOR, SA1E SERIES, 20 M, THROUGH-BEAM, NPN, 10 V TO 30 V

Part	Output Configuration	Sensing Method	Sensing Distance	Sensing Distance	Response Time	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Connection Method	Cable Length	Cable Length	Adjustment Type	Light Source	Voltage - Supply [Max]	Voltage - Supply [Min]
IDEC Corporation SA1E-TN1-2M	NPN	Through-Beam	32.8 ft	10 m	1 ms	55 °C	-25 °C	IP67	Cable	78.74 in	2 m	Adjustable	Infrared	30 VDC	10 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Through-Beam Optical Sensor 32.80' (10m) NPN
