NT-MINI51L

Nuvoton Technology Corporation

MINI51 EVAL BRD

Search across all available documentation for this part.

Nuvoton Technology Corporation

MINI51 EVAL BRD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	17	$ 19.68

General part information

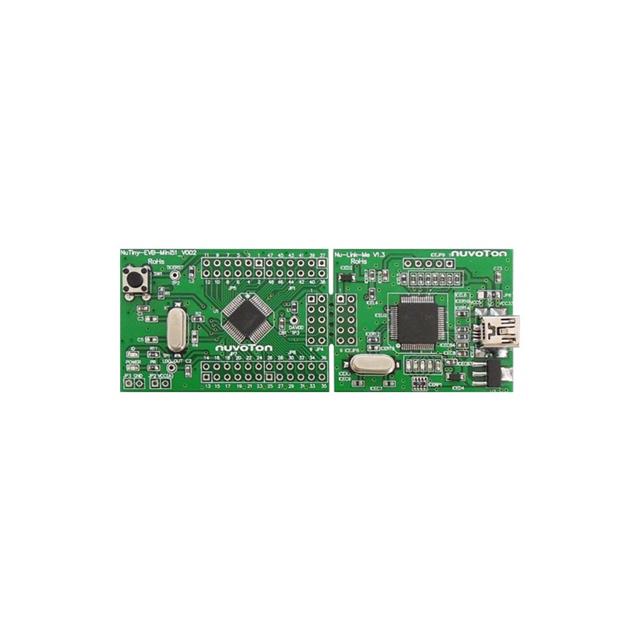

Mini51 NuMicro™ ARM® Cortex®-M0 MCU 32-Bit Embedded Evaluation Board

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	NT-MINI51L	MINI51 Series

Connectivity	-	IrDA, UART/USART, I2C, SPI
Contents	Board(s)	Board(s)
Core Processor	ARM® Cortex®-M0	ARM® Cortex®-M0
Core Size	-	32-Bit Single-Core
Data Converters	-	8
Data Converters	-	10
Mounting Type	Fixed	Surface Mount, Fixed
Number of I/O	-	29
Operating Temperature	-	85 - 105 °C
Operating Temperature	-	-40 °C
Oscillator Type	-	Internal
Peripherals	-	PWM, LVD, WDT, Brown-out Detect/Reset, POR
Program Memory Size	-	4 KB
Program Memory Type	-	FLASH
RAM Size	-	2K x 8
Speed	-	24 MHz
Supplier Device Package	-	33-QFN (5x5)
Type	MCU 32-Bit	MCU 32-Bit
Utilized IC / Part	Mini51	Mini51
Voltage - Supply (Vcc/Vdd)	-	2.5 V
Voltage - Supply (Vcc/Vdd)	-	5.5 V

IC MCU 32BIT 4KB FLASH 33QFN

Part	Data Converters [custom]	Data Converters [custom]	Core Size	Supplier Device Package	Core Processor	Program Memory Type	RAM Size	Mounting Type	Program Memory Size	Connectivity	Speed	Peripherals	Oscillator Type	Number of I/O	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Contents	Utilized IC / Part	Type
Nuvoton Technology Corporation MINI51TDE	8	10	32-Bit Single-Core	33-QFN (5x5)	ARM® Cortex®-M0	FLASH	2K x 8	Surface Mount	4 KB	I2C, IrDA, SPI, UART/USART	24 MHz	Brown-out Detect/Reset, LVD, POR, PWM, WDT	Internal	29	105 °C	-40 °C	2.5 V	5.5 V
Nuvoton Technology Corporation NT-MINI51L					ARM® Cortex®-M0			Fixed											Board(s)	Mini51	MCU 32-Bit
Nuvoton Technology Corporation MINI51ZAN	8	10	32-Bit Single-Core		ARM® Cortex®-M0	FLASH	2K x 8	Surface Mount	4 KB	I2C, IrDA, SPI, UART/USART	24 MHz		Internal	29	85 °C	-40 °C	2.5 V	5.5 V
