7408W 060250

Active

Belden Inc.

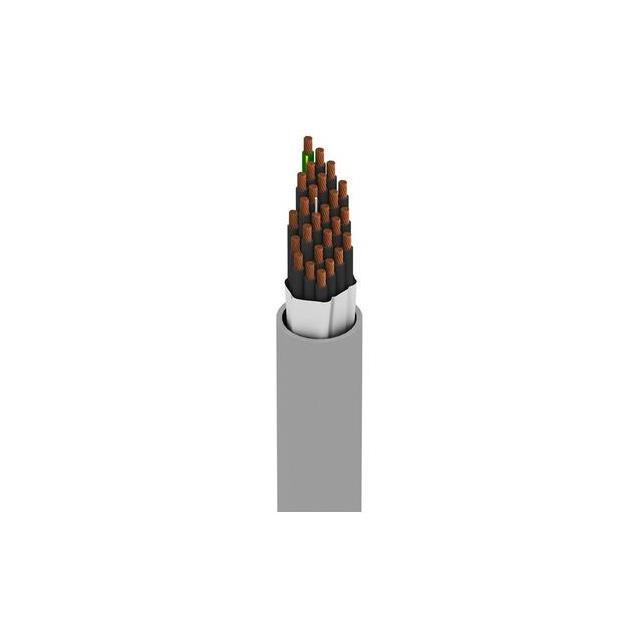

CABLE 25COND 20AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 25COND 20AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	7408W 060250

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	10
Features	Oil Resistant, UV Resistant
Jacket (Insulation) Diameter [diameter]	0.517 in
Jacket (Insulation) Diameter [diameter]	13.13 mm
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket (Insulation) Thickness	1.346 mm
Jacket (Insulation) Thickness	0.053 in
Jacket Color	Chrome
Length	3000 "
Length	76.2 m
Number of Conductors	25
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Ratings	UL Style 20327
Voltage	300 V
Wire Gauge	20 AWG

Part	Conductor Material	Wire Gauge	Conductor Insulation	Ratings	Jacket Color	Voltage	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Conductors	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Features	Conductor Strand [custom]	Conductor Strand [custom]
Belden Inc. 7408W 060250	Copper Bare	20 AWG	Poly-Vinyl Chloride (PVC)	UL Style 20327	Chrome	300 V	Multi-Conductor	0.517 in	13.13 mm	90 °C	-40 °C	25	Thermoplastic Elastomer (TPE)	1.346 mm	0.053 in	3000 "	76.2 m	Oil Resistant UV Resistant	30 AWG	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	250	$ 8.79

General part information

25 Conductor Multi-Conductor Cable Chrome 20 AWG 250.0' (76.2m)
