Description
General part information
35DBM10 Series

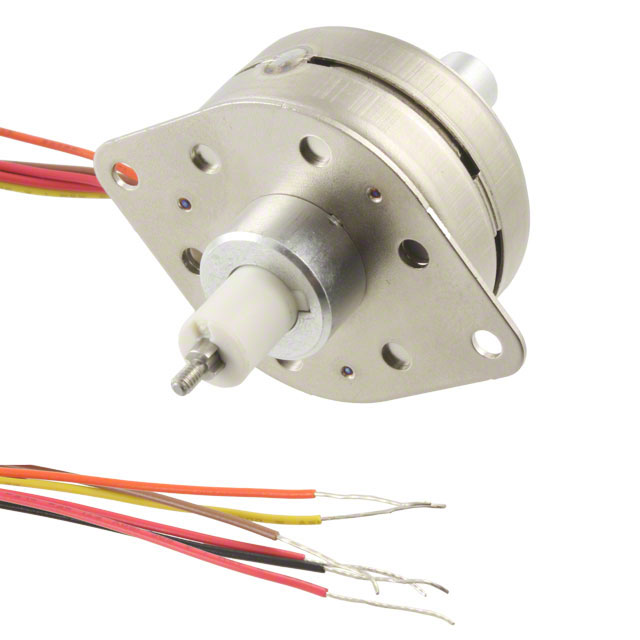

STEPPER MOTOR PM LINEAR ACT 12V
Technical Specifications
Parameters and characteristics for this part
| Specification | 35DBM10B2U-K |
|---|---|
| Construction | Ball Screw |
| Load Force (Static) | 4.7 lbf |
| Motor Type | Stepper, Unipolar |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Stroke Length (Linear) | 0.705 in |
| Termination Style | Wire Leads |
| Type | Linear Actuator |
| Voltage - Rated | 12 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
