132170-10

Active

Amphenol RF

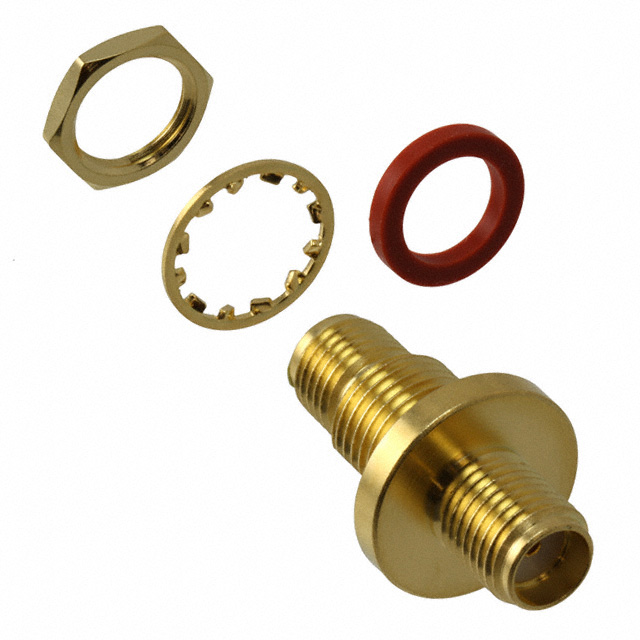

CONN ADAPT JACK-JACK SMA 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

132170-10

Active

Amphenol RF

CONN ADAPT JACK-JACK SMA 50 OHM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	132170-10

Adapter Series	SMA to SMA
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Includes	1 Gasket, 1 Connector, 1 Nut, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

132170 Series

Part	Center Contact Material	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Type	Frequency - Max [Max]	Conversion Type	Style	Dielectric Material	Convert From (Adapter End)	Mounting Feature	Adapter Series	Center Contact Plating	Convert To (Adapter End)	Impedance	Body Material	Includes	Center Gender	Mating Cycles	Ingress Protection
Amphenol RF 132170RP-RP	Beryllium Copper	Gold	-65 ░C	165 °C	Jack to Jack	18 GHz	Same Series	Straight	Polytetrafluoroethylene (PTFE)	RP-SMA Jack Male Pin	Bulkhead	RP-SMA to RP-SMA	Gold	Male Pin RP-SMA Jack	50 Ohms	Brass
Amphenol RF 132170-11	Beryllium Copper	Gold	-65 ░C	165 °C	Jack to Jack	18 GHz	Same Series	Straight	Polytetrafluoroethylene (PTFE)	Female Socket SMA Jack	Bulkhead	SMA to SMA	Gold	Female Socket SMA Jack	50 Ohms	Brass	1 Connector 1 Lockwasher 1 Nut	Female to Female
Amphenol RF 132170-10RP-RP	Brass	Gold	-65 ░C	165 °C	Jack to Jack	18 GHz	Same Series	Straight	Polytetrafluoroethylene (PTFE)	RP-SMA Jack Male Pin	Bulkhead	RP-SMA to RP-SMA	Gold	Male Pin RP-SMA Jack	50 Ohms	Brass	1 Connector 1 Lockwasher 1 Nut	Male to Male
Amphenol RF 132170-12-EE	Beryllium Copper	Nickel	-65 ░C	165 °C	Jack to Jack	18 GHz	Same Series	Straight	Polytetrafluoroethylene (PTFE)	Female Socket SMA Jack	Bulkhead	SMA to SMA	Gold	Female Socket SMA Jack	50 Ohms	Brass		Female to Female	500	IP68 - Dust Tight Waterproof
Amphenol RF 132170-10	Beryllium Copper	Gold	-65 ░C	165 °C	Jack to Jack	18 GHz	Same Series	Straight	Polytetrafluoroethylene (PTFE)	Female Socket SMA Jack	Bulkhead	SMA to SMA	Gold	Female Socket SMA Jack	50 Ohms	Brass	1 Connector 1 Gasket 1 Lockwasher 1 Nut	Female to Female	500

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.32
		10	$ 15.88
		30	$ 15.05
		50	$ 14.83
		100	$ 13.08
		250	$ 12.21
		500	$ 11.95

Description

General part information

132170 Series

Adapter Coaxial Connector SMA Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
