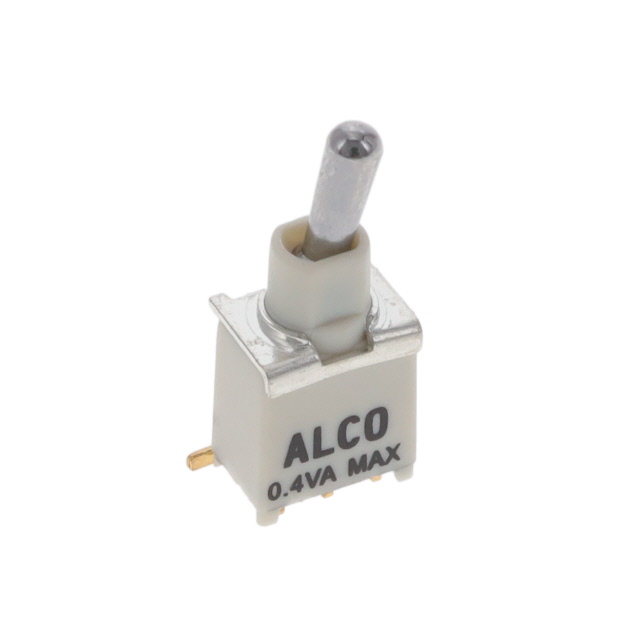

TBS1T2A1MTRES

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH TOGGLE SPDT 0.4VA 20V

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH TOGGLE SPDT 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Length [x]	Switch Function	Illumination	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Bushing Thread	Electrical Life	Termination Style	Voltage Rating - DC	Actuator Type	Voltage Rating - AC	Current Rating (Amps)	Features
TE Connectivity Raychem Cable Protection TBS1TBA1MZRES	6.1 mm	On-On	Non-Illuminated	Surface Mount Right Angle	-30 ░C	85 °C	SPDT	Unthreaded	30000 Cycles	SMD (SMT) Tab	20 V	Standard Round	20 V	0.4 VA	Process Sealed
TE Connectivity Raychem Cable Protection TBS1T2A1MZRES	6.1 mm	On-On	Non-Illuminated	Surface Mount Right Angle	-30 ░C	85 °C	SPDT	Unthreaded	30000 Cycles	SMD (SMT) Tab	20 V	Standard Round	20 V	0.4 VA	Process Sealed
TE Connectivity Raychem Cable Protection TBS1TBA1MTRES	6.1 mm	On-On	Non-Illuminated	Surface Mount Right Angle	-30 ░C	85 °C	SPDT	Unthreaded	30000 Cycles	SMD (SMT) Tab	20 V	Standard Round	20 V	0.4 VA	Process Sealed
TE Connectivity Raychem Cable Protection TBS1T2A1MTRES	6.1 mm	On-On	Non-Illuminated	Surface Mount Right Angle	-30 ░C	85 °C	SPDT	Unthreaded	30000 Cycles	SMD (SMT) Tab	20 V	Standard Round	20 V	0.4 VA	Process Sealed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Surface Mount, Right Angle
