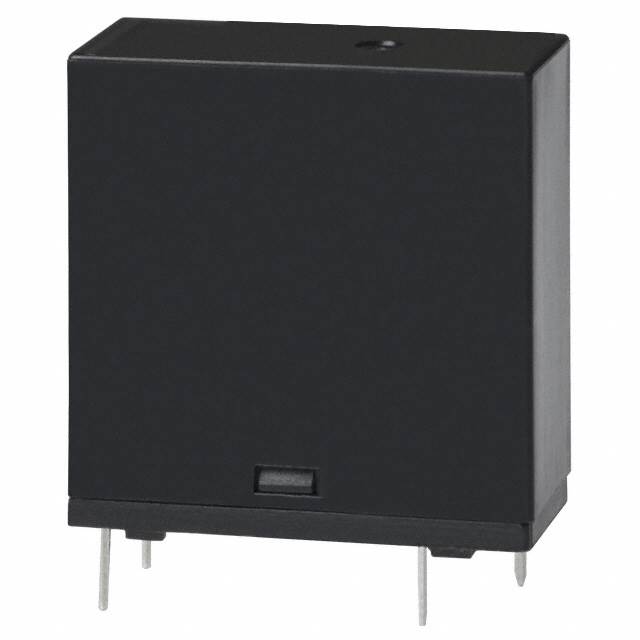

LKP1AF-5V - LK(P,S)1AF Series

LKP1AF-5V

Obsolete
Panasonic Electric Works

RELAY GEN PURPOSE SPST 10A 5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date CodesGeneral Appl Guidelines+1
LKP1AF-5V - LK(P,S)1AF Series

LKP1AF-5V

Obsolete
Panasonic Electric Works

RELAY GEN PURPOSE SPST 10A 5V

Deep-Dive with AI

DocumentsHow to Read Date CodesGeneral Appl Guidelines+1

Technical Specifications

Parameters and characteristics for this part

SpecificationLKP1AF-5V
Approval AgencyRUV, UR VDE, CSA
Coil Current106 mA
Coil Resistance47 Ohms
Coil TypeNon Latching
Coil Voltage5 VDC
Contact FormSPST-NO (1 Form A)
Contact MaterialSilver Tin Oxide (AgSnO)
Contact Rating (Current)10 A
Load - Max Switching2770 VA, 300 W
Mounting TypeThrough Hole
Must Operate Voltage3.5 VDC
Must Release Voltage0.5 VDC
Operate Time15 ms
Operating Temperature [Max]70 °C
Operating Temperature [Min]-40 °C
Relay TypeGeneral Purpose
Release Time5 ms
Seal RatingSealed - Flux Protection
Switching Voltage277 VAC, 30 VDC
Termination StylePC Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$

Description

General part information

LKP1A Series

General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
