ActiveMill-Max Manufacturing Corp.

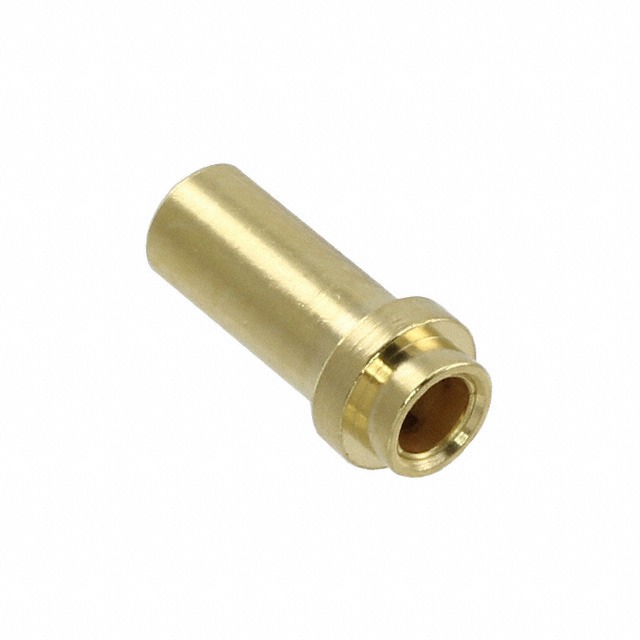

CONN PIN RCPT .065-.082 SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
0393-0-15-15-07-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .065-.082 SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0393-0-15-15-07-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] [diameter] | 0.082 in |
| Accepts Pin Diameter [Max] [diameter] | 2.08 mm |
| Accepts Pin Diameter [Min] [diameter] | 0.065 in |
| Accepts Pin Diameter [Min] [diameter] | 1.65 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 0.187 in |
| Flange Diameter [diameter] | 4.75 mm |
| Length - Overall [x] | 0.412 " |
| Length - Overall [x] | 10.46 mm |
| Mounting Hole Diameter [diameter] | 0.144 " |
| Mounting Hole Diameter [diameter] | 3.66 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 2.72 mm |
| Pin Hole Diameter [diameter] | 0.107 in |
| Socket Depth [z] | 0.34 in |
| Socket Depth [z] | 8.64 mm |
| Tail Type | No Tail |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.11 | |
| 10 | $ 1.61 | |||
| 25 | $ 1.45 | |||
| 50 | $ 1.34 | |||
| 100 | $ 1.24 | |||
| 250 | $ 1.12 | |||
| 500 | $ 1.04 | |||
| 1000 | $ 0.97 | |||
| 2500 | $ 0.88 | |||
Description
General part information
0393-0 Series
Pin Receptacle Connector 0.065" ~ 0.082" (1.65mm ~ 2.08mm) No Tail Solder
Documents
Technical documentation and resources
No documents available
