Capacitors

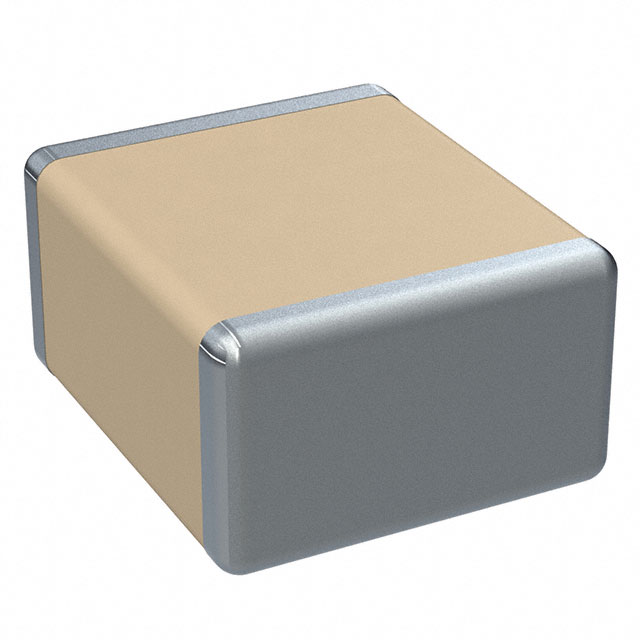

C1812C273J5RAC7800

Active

KEMET

CAP CER 0.027UF 50V X7R 1812

Capacitors

C1812C273J5RAC7800

Active

KEMET

CAP CER 0.027UF 50V X7R 1812

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C1812C273J5RAC7800

Applications	Bypass, Decoupling
Capacitance	0.027 µF
Mounting Type	Surface Mount, MLCC
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	1812 (4532 Metric)
Size / Dimension Length	0.177 in
Size / Dimension Width	0.126 in
Temperature Coefficient	X7R
Thickness (Max)	0.043 in
Tolerance	5 %
Voltage - Rated	50 V

C1812C Series

...

Part	Applications	Thickness (Max)	Capacitance	Temperature Coefficient	Size / Dimension Length	Size / Dimension Width	Features	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Tolerance	Voltage - Rated	Package / Case	Ratings
KEMET C1812C683J1GAC7800	General Purpose	0.043 in	0.068 µF	C0G NP0	0.177 in	0.126 in	Low ESL	125 °C	-55 °C	MLCC Surface Mount	5 %	100 VAC/DC	1812 (4532 Metric)
KEMET C1812C103F4JACAUTO	Automotive	0.043 in	10000 pF	U2J	0.177 in	0.126 in	Low Dissipation Factor Low ESL	125 °C	-55 °C	MLCC Surface Mount	1 %	16 V	1812 (4532 Metric)	AEC-Q200
KEMET C1812C393G3JAC7800	General Purpose	0.043 in	0.039 µF	U2J	0.177 in	0.126 in	Low Dissipation Factor Low ESL	125 °C	-55 °C	MLCC Surface Mount	2 %	25 VAC	1810 (4525 Metric)
KEMET C1812C273J5RAC7800	Bypass Decoupling	0.043 in	0.027 µF	X7R	0.177 in	0.126 in		125 °C	-55 °C	MLCC Surface Mount	5 %	50 V	1812 (4532 Metric)
KEMET C1812C821M1HAC7800	General Purpose	0.043 in	820 pF	X8R	0.177 in	0.126 in	High Temperature Low ESL	150 °C	-55 °C	MLCC Surface Mount	20 %	100 VAC/DC	1812 (4532 Metric)
KEMET C1812C474F8JAC7800	General Purpose	0.043 in	0.47 µF	U2J	0.177 in	0.126 in	Low Dissipation Factor Low ESL	125 °C	-55 °C	MLCC Surface Mount	1 %	10 V	1810 (4525 Metric)
KEMET C1812C821J5HACAUTO	Automotive	0.043 in	820 pF	X8R	0.177 in	0.126 in	High Temperature Low ESL	150 °C	-55 °C	MLCC Surface Mount	5 %	50 V	1812 (4532 Metric)	AEC-Q200
KEMET C1812C124M3JACAUTO	Automotive	0.043 in	0.12 µF	U2J	0.177 in	0.126 in	Low Dissipation Factor Low ESL	125 °C	-55 °C	MLCC Surface Mount	20 %	25 VAC	1812 (4532 Metric)	AEC-Q200
KEMET C1812C274K8JAC7800	General Purpose	0.043 in	0.27 µF	U2J	0.177 in	0.126 in	Low Dissipation Factor Low ESL	125 °C	-55 °C	MLCC Surface Mount	10 %	10 V	1810 (4525 Metric)
KEMET C1812C475K3RAC7800	Bypass Decoupling	0.071 in	4.7 µF	X7R	0.177 in	0.126 in		125 °C	-55 °C	MLCC Surface Mount	10 %	25 VAC	1812 (4532 Metric)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$	Updated

Digikey	N/A	0	$ 0.30	30d+
	Tape & Reel (TR)	1000	$ 0.27	30d+

CAD

3D models and CAD resources for this part

Description

General part information

C1812C Series

0.027 µF ±5% 50V Ceramic Capacitor X7R 1812 (4532 Metric)

Documents

Technical documentation and resources

Datasheet

C1812C273J5RACTU

C1812C273J5RAC7800 | Datasheet
