Connectors, Interconnects

770894-7

Active

TE Connectivity Raychem Cable Protection

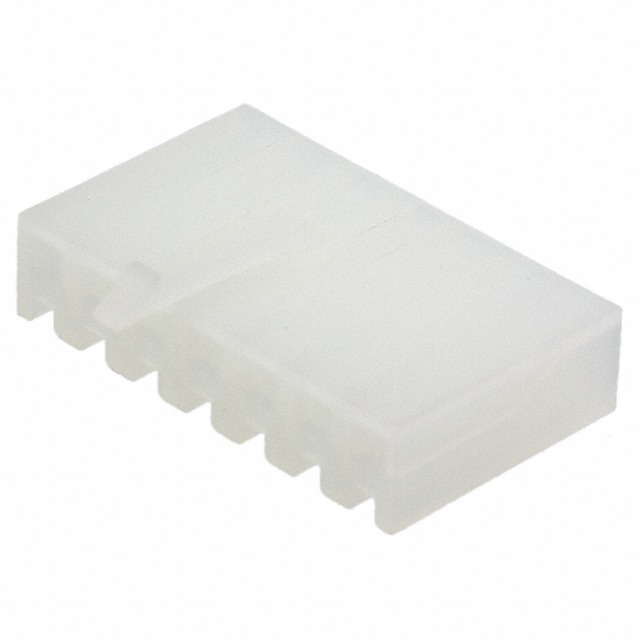

07P SL156 HSG W/THRU BD LATCH ROHS COMPLIANT: YES

Search across all available documentation for this part.

Connectors, Interconnects

Active

TE Connectivity Raychem Cable Protection

07P SL156 HSG W/THRU BD LATCH ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Fastening Type	Color	Insulation Material	Pitch [x]	Pitch [x]	Number of Rows	Contact Type	Note	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Mounting Type	Number of Positions
TE Connectivity Raychem Cable Protection 770894-5	Board Latch	Natural	Nylon Polyamide (PA)	0.156 in	3.96 mm	1	Female Socket	Contacts Not Included	Crimp	105 ░C	-55 °C	Receptacle	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 770894-6	Board Latch	Natural	Nylon Polyamide (PA)	0.156 in	3.96 mm	1	Female Socket	Contacts Not Included	Crimp	105 ░C	-55 °C	Receptacle	Free Hanging (In-Line)	6
TE Connectivity Raychem Cable Protection 770894-3	Board Latch	Natural	Nylon Polyamide (PA)	0.156 in	3.96 mm	1	Female Socket	Contacts Not Included	Crimp	105 ░C	-55 °C	Receptacle	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 770894-2	Board Latch	Natural	Nylon Polyamide (PA)	0.156 in	3.96 mm	1	Female Socket	Contacts Not Included	Crimp	105 ░C	-55 °C	Receptacle	Free Hanging (In-Line)	2
TE Connectivity Raychem Cable Protection 770894-7	Board Latch	Natural	Nylon Polyamide (PA)	0.156 in	3.96 mm	1	Female Socket	Contacts Not Included	Crimp	105 ░C	-55 °C	Receptacle	Free Hanging (In-Line)	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2500	$ 0.58
Newark	Each	2500	$ 0.56

General part information

7 Rectangular Connectors - Housings Receptacle Natural 0.156" (3.96mm)
