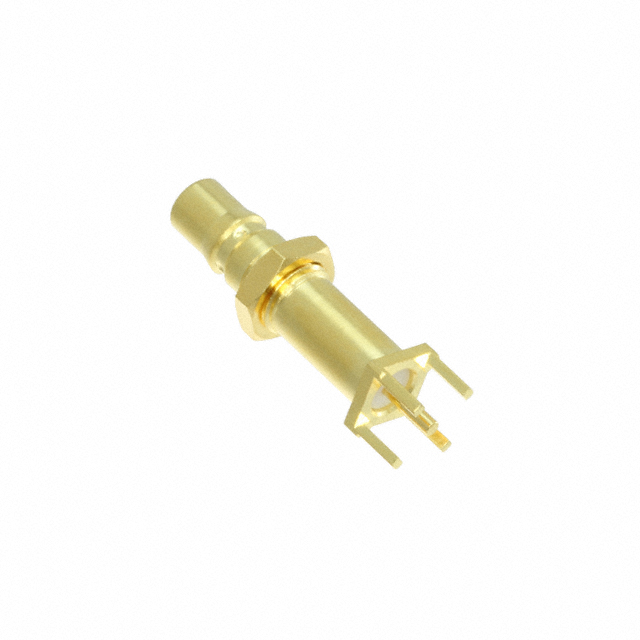

930-163J-51P

Active

Amphenol RF

CONN QMA 0HZ TO 6GHZ 50OHM SOLDER ST THRU-HOLE F GOLD OVER COPPER BAG

Search across all available documentation for this part.

Active

Amphenol RF

CONN QMA 0HZ TO 6GHZ 50OHM SOLDER ST THRU-HOLE F GOLD OVER COPPER BAG

Technical Specifications

Parameters and characteristics for this part

Specification	930-163J-51P

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Nut, 1 Connector
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	480 V

Part	Shield Termination	Body Material	Housing Color	Fastening Type	Body Finish	Impedance	Connector Type	Center Contact Plating	Mounting Type	Center Contact Material	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Includes	Contact Termination	Frequency - Max [Max]	Number of Ports	Voltage Rating
Amphenol RF 930-163J-51P	Solder	Brass	Gold	Snap-On	Gold	50 Ohms	Female Socket Receptacle	Gold	Panel Mount Through Hole	Beryllium Copper	Polytetrafluoroethylene (PTFE)	-40 °C	80 C	Bulkhead - Front Side Nut	1 Connector 1 Nut	Solder	6000 MHz	1	480 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 14.25

General part information

QMA Connector Receptacle, Female Socket 50 Ohms Panel Mount, Through Hole Solder
