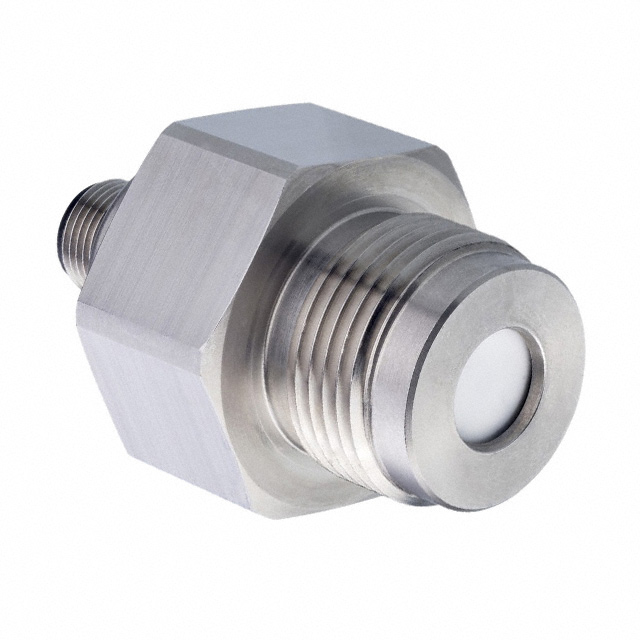

IPSSAT-G1000-5S

Obsolete

Sensata Technologies

PRESSURE TRANS 0-1KMBARG 4-20MA

Search across all available documentation for this part.

Obsolete

Sensata Technologies

PRESSURE TRANS 0-1KMBARG 4-20MA

Technical Specifications

Parameters and characteristics for this part

Specification	IPSSAT-G1000-5S

Accuracy	0.25 %
Applications	Industrial Automation
Features	Temperature Compensated, Amplified Output
Maximum Pressure	500 kPa
Maximum Pressure	72.52 PSI
Operating Pressure	100 kPa
Operating Pressure	14.5 PSI
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Output [Max]	20 mA
Output [Min]	4 mA
Output Type	Analog Current
Package / Case	Cylinder, Threaded
Port Size	Male
Port Size	0.75 "
Port Size	19.05 mm
Port Style	Threaded
Pressure Type	Sealed Gauge
Termination Style	Connector, 4-Pin
Voltage - Supply [Max]	32 VDC
Voltage - Supply [Min]	9 V

Part	Maximum Pressure	Maximum Pressure	Voltage - Supply [Min]	Voltage - Supply [Max]	Pressure Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Port Style	Termination Style	Package / Case	Output [Max]	Output [Min]	Operating Pressure	Operating Pressure	Output Type	Accuracy	Applications	Port Size	Port Size	Port Size
Sensata Technologies IPSSAT-G2000-5C	500 kPa	72.52 PSI	9 V	32 VDC	Sealed Gauge	Amplified Output Temperature Compensated	-20 C	80 C	Threaded	Connector 4-Pin	Cylinder Threaded	20 mA	4 mA	2 bar	29.01 PSI	Analog Current	0.25 %	Industrial Automation	Male	0.75 "	19.05 mm
Sensata Technologies IPSSAT-G1000-5S	500 kPa	72.52 PSI	9 V	32 VDC	Sealed Gauge	Amplified Output Temperature Compensated	-20 C	80 C	Threaded	Connector 4-Pin	Cylinder Threaded	20 mA	4 mA	100 kPa	14.5 PSI	Analog Current	0.25 %	Industrial Automation	Male	0.75 "	19.05 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 550.35

General part information

PRESSURE TRANS 0-1KMBARG 4-20MA
