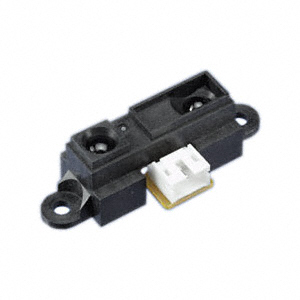

GP2Y0D21YK0F

Active

SHARP/Socle Technology

SENSOR OPTICAL 24CM DIGITAL

Search across all available documentation for this part.

Active

SHARP/Socle Technology

SENSOR OPTICAL 24CM DIGITAL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optical Sensor 24cm Digital Output

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	GP2Y0D21YK0F	GP2Y0 Series

	-	-
Current - Supply	40 mA	22 - 50 mA
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-10 °C	-10 °C
Output Type	-	Analog, I2C
Sensing Distance	24 cm	24 - 80 cm
Sensing Distance	-	0.59 - 100 cm
Sensing Distance	-	5.91 - 550 cm
Sensing Distance	-	15 cm
Sensing Distance	-	1.5 - 40 mm
Sensing Distance	-	300 mm
Voltage - Output (Typ) @ Distance	-	2.5 - 550 mV
Voltage - Output Difference (Typ) @ Distance	-	1.55 - 1.9 V
Voltage - Output Difference (Typ) @ Distance	-	10 cm
Voltage - Output Difference (Typ) @ Distance	-	80 cm
Voltage - Supply [Max]	5.5 V	3.3 - 5.5 V
Voltage - Supply [Min]	4.5 V	2.7 - 4.5 V

SENSOR OPTICAL 2-15CM ANALOG

Part	Sensing Distance [Min]	Sensing Distance [Max]	Output Type	Voltage - Output Difference (Typ) @ Distance	Current - Supply	Voltage - Output (Typ) @ Distance	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Voltage - Output Difference (Typ) @ Distance [Min] [custom]	Voltage - Output Difference (Typ) @ Distance [Max] [custom]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]
SHARP/Socle Technology GP2Y0A51SK0F	2 cm	15 cm	Analog	1.65 V	22 mA	400 mV	-10 °C	60 °C	4.5 V	5.5 V
SHARP/Socle Technology GP2Y0A21YK0F	10 cm	80 cm	Analog	1.9 V	40 mA	400 mV	-10 °C	60 °C	4.5 V	5.5 V	10 cm	80 cm
SHARP/Socle Technology GP2Y0D417KBF
SHARP/Socle Technology GP2Y0A60SZLF	10 cm	150 cm	Analog	1.6 V	50 mA	150 cm, 350 mV	-10 °C	60 °C	4.5 V	5.5 V
SHARP/Socle Technology GP2Y0AF15Y	0.59 "	5.91 "	Analog		30 mA	400 mV	-10 °C	60 °C	4.5 V	5.5 V			15 cm	20 mm
SHARP/Socle Technology GP2Y0E03	4 cm	500 mm	Analog, I2C	1.65 V	36 mA	50 cm, 550 mV	-10 °C	60 °C	2.7 V	5.5 V
SHARP/Socle Technology GP2Y0A02SKDF
SHARP/Socle Technology GP2Y0A41SK0F	1.57 in	11.81 "	Analog		22 mA	30 cm, 400 mV	-10 °C	60 °C	4.5 V	5.5 V				40 mm	300 mm
SHARP/Socle Technology GP2Y0E02B	4 cm	500 mm	I2C		36 mA		-10 °C	60 °C	2.7 V	3.3 V
SHARP/Socle Technology GP2Y0A710K0F	39.37 ", 100 cm	216.54 in, 550 cm	Analog	1.55 V	50 mA	2.5 V, 100 cm	-10 °C	60 °C	4.5 V	5.5 V
