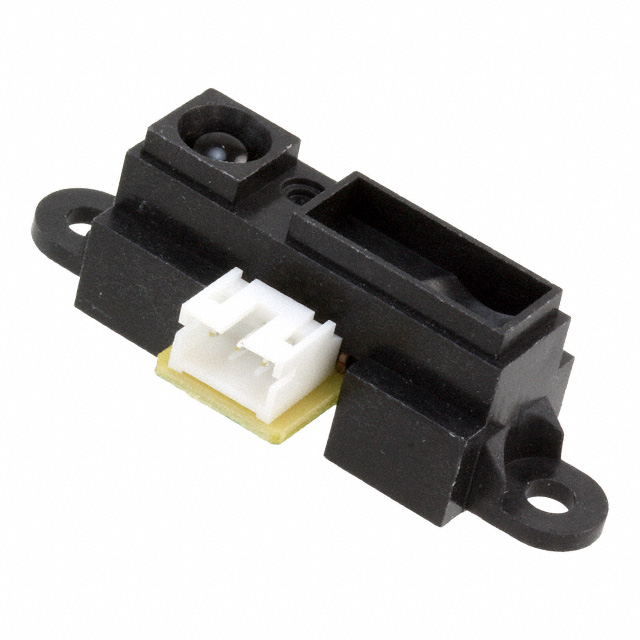

GP2Y0A41SK0F

Active

SHARP/Socle Technology

SENSOR OPTICAL 4-30CM ANALOG

Search across all available documentation for this part.

Active

SHARP/Socle Technology

SENSOR OPTICAL 4-30CM ANALOG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optical Sensor 1.57" ~ 11.81" (4 ~ 30cm) Analog Output

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	GP2Y0A41SK0F	GP2Y0 Series

	-	-
Current - Supply	22 mA	22 - 50 mA
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-10 °C	-10 °C
Output Type	Analog	Analog, I2C
Sensing Distance	-	15 cm
Sensing Distance	-	24 - 80 cm
Sensing Distance [Max]	300 mm	300 mm
Sensing Distance [Max]	11.81 "	5.91 - 550 cm
Sensing Distance [Min]	40 mm	1.5 - 40 mm
Sensing Distance [Min]	1.57 in	0.59 - 100 cm
Voltage - Output (Typ) @ Distance	30 cm, 400 mV	2.5 - 550 mV
Voltage - Output Difference (Typ) @ Distance	-	1.55 - 1.9 V
Voltage - Output Difference (Typ) @ Distance	-	10 cm
Voltage - Output Difference (Typ) @ Distance	-	80 cm
Voltage - Supply [Max]	5.5 V	3.3 - 5.5 V
Voltage - Supply [Min]	4.5 V	2.7 - 4.5 V

SENSOR OPTICAL 2-15CM ANALOG

Part	Sensing Distance [Min]	Sensing Distance [Max]	Output Type	Voltage - Output Difference (Typ) @ Distance	Current - Supply	Voltage - Output (Typ) @ Distance	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Voltage - Output Difference (Typ) @ Distance [Min] [custom]	Voltage - Output Difference (Typ) @ Distance [Max] [custom]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]
SHARP/Socle Technology GP2Y0A51SK0F	2 cm	15 cm	Analog	1.65 V	22 mA	400 mV	-10 °C	60 °C	4.5 V	5.5 V
SHARP/Socle Technology GP2Y0A21YK0F	10 cm	80 cm	Analog	1.9 V	40 mA	400 mV	-10 °C	60 °C	4.5 V	5.5 V	10 cm	80 cm
SHARP/Socle Technology GP2Y0D417KBF
SHARP/Socle Technology GP2Y0A60SZLF	10 cm	150 cm	Analog	1.6 V	50 mA	150 cm, 350 mV	-10 °C	60 °C	4.5 V	5.5 V
SHARP/Socle Technology GP2Y0AF15Y	0.59 "	5.91 "	Analog		30 mA	400 mV	-10 °C	60 °C	4.5 V	5.5 V			15 cm	20 mm
SHARP/Socle Technology GP2Y0E03	4 cm	500 mm	Analog, I2C	1.65 V	36 mA	50 cm, 550 mV	-10 °C	60 °C	2.7 V	5.5 V
SHARP/Socle Technology GP2Y0A02SKDF
SHARP/Socle Technology GP2Y0A41SK0F	1.57 in	11.81 "	Analog		22 mA	30 cm, 400 mV	-10 °C	60 °C	4.5 V	5.5 V				40 mm	300 mm
SHARP/Socle Technology GP2Y0E02B	4 cm	500 mm	I2C		36 mA		-10 °C	60 °C	2.7 V	3.3 V
SHARP/Socle Technology GP2Y0A710K0F	39.37 ", 100 cm	216.54 in, 550 cm	Analog	1.55 V	50 mA	2.5 V, 100 cm	-10 °C	60 °C	4.5 V	5.5 V
