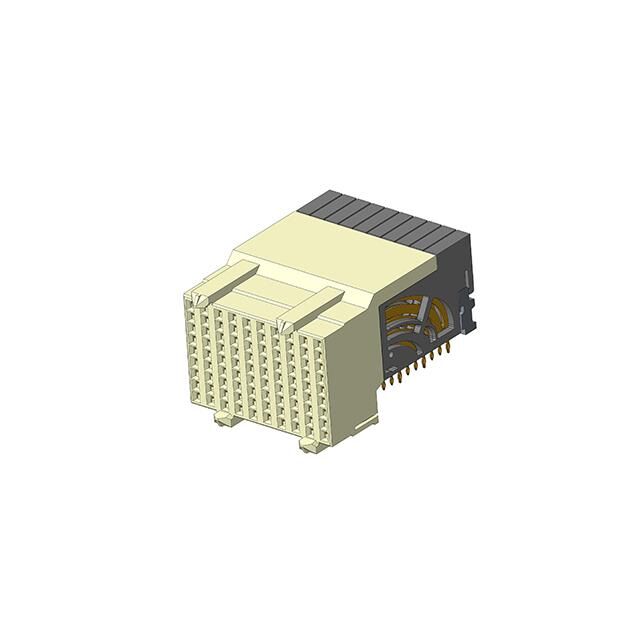

10124432-101LF

Active

Amphenol ICC (FCI)

CONN RCPT HIGH SPEED 90P EDGE MT

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RCPT HIGH SPEED 90P EDGE MT

Technical Specifications

Parameters and characteristics for this part

Specification	10124432-101LF

Color	Black
Connector Style	High Speed
Connector Type	Receptacle, Female Sockets
Connector Usage	Daughtercard
Contact Finish	Gold
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	10
Number of Positions	90
Number of Positions Loaded	All
Number of Rows	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit

Part	Connector Usage	Termination	Number of Columns	Mounting Type	Number of Positions Loaded	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Number of Positions	Pitch [x]	Pitch [x]	Connector Style	Connector Type	Number of Rows	Color
Amphenol ICC (FCI) 10124432-101LF	Daughtercard	Press-Fit	10	Board Edge Right Angle Through Hole	All	UL94 V-0	85 °C	-55 °C	Gold	90	0.079 in	2 mm	High Speed	Receptacle Female Sockets	8	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

90 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Black High Speed
