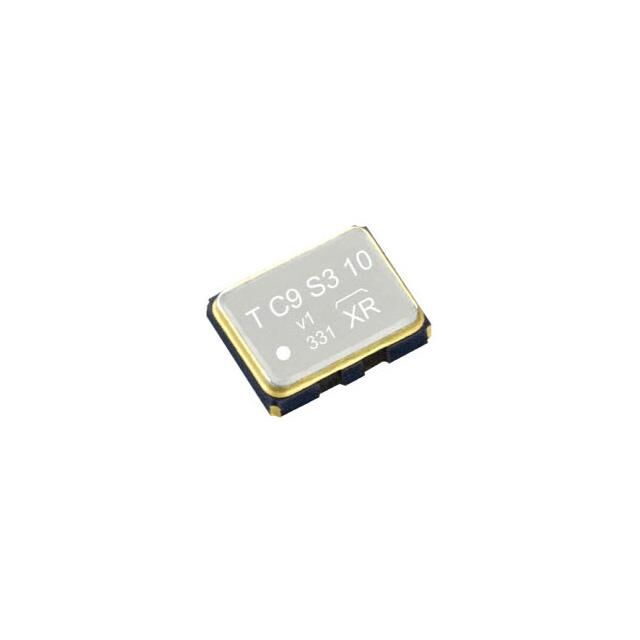

TG-5006CE-44W 19.2000M6

Active

EPSON

TG-5006CE-44W 19.2000M6: TCXO 2K

Search across all available documentation for this part.

Active

EPSON

TG-5006CE-44W 19.2000M6: TCXO 2K

Technical Specifications

Parameters and characteristics commom to parts in this series

TG-5006CE-53W 40.0000MB: VC-TCXO

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Output	Frequency	Package / Case	Base Resonator	Frequency Stability	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current - Supply (Max) [Max]	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package
EPSON TG-5006CE-53W 40.0000MB	3.465 V	1.7 V	3.2 mm	2.5 mm	0.126 in	0.098 in	Clipped Sine Wave	40 MHz	4-SMD, No Lead	Crystal	2 ppm	-30 ░C	85 °C	Surface Mount	2 mA	VCTCXO	0.039 "	1 mm
EPSON TG-5006CE-12V 26.0000M3	3.465 V	1.7 V	3.2 mm	2.5 mm	0.126 in	0.098 in	Clipped Sine Wave	26 MHz	4-SMD, No Lead	Crystal	2 ppm	-30 ░C	85 °C	Surface Mount	1.5 mA	VCTCXO	0.039 "	1 mm
EPSON TG-5006CE-35H 30.0000MB	3.465 V	1.7 V	3.2 mm	2.5 mm	0.126 in	0.098 in	Clipped Sine Wave	30 MHz	4-SMD, No Lead	Crystal	2 ppm	-30 ░C	85 °C	Surface Mount	2 mA	TCXO	0.039 "	1 mm
EPSON TG-5006CE-44W 19.2000M6	3.465 V	1.7 V	3.2 mm	2.5 mm	0.126 in	0.098 in	Clipped Sine Wave	19.2 MHz	4-SMD, No Lead	Crystal	2 ppm	-30 ░C	85 °C	Surface Mount	1.5 mA	TCXO	0.039 "	1 mm	4-SMD (3.2x2.5)
EPSON TG-5006CE-26L 26.0000MB	3.465 V	1.7 V	3.2 mm	2.5 mm	0.126 in	0.098 in	Clipped Sine Wave	26 MHz	4-SMD, No Lead	Crystal	2 ppm	-30 ░C	85 °C	Surface Mount	1.5 mA	TCXO	0.039 "	1 mm
EPSON TG-5006CE-26L 26.0000M3	3.465 V	1.7 V	3.2 mm	2.5 mm	0.126 in	0.098 in	Clipped Sine Wave	26 MHz	4-SMD, No Lead	Crystal	2 ppm	-30 ░C	85 °C	Surface Mount	1.5 mA	TCXO	0.039 "	1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 1.64

General part information

19.2 MHz TCXO Clipped Sine Wave Oscillator 1.7V ~ 3.465V 4-SMD, No Lead
