5-828590-0

Obsolete

TE Connectivity AMP Connectors

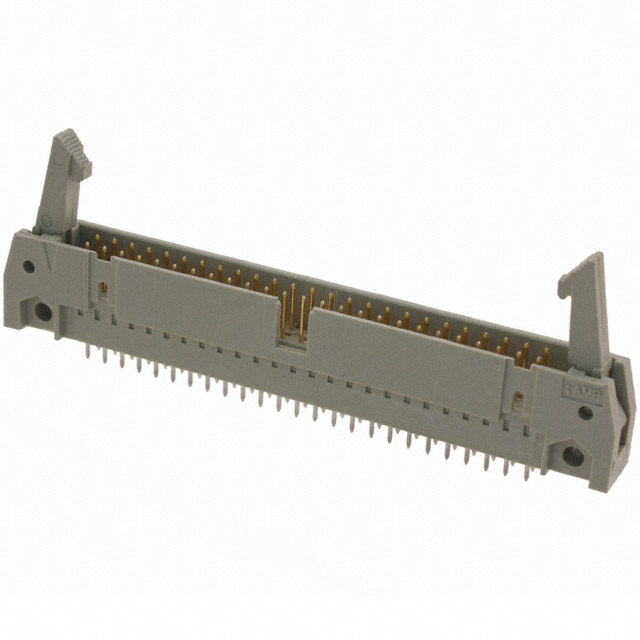

CONN HEADER VERT 50POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5-828590-0

Obsolete

TE Connectivity AMP Connectors

CONN HEADER VERT 50POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

828590 Series

Connector Header Through Hole 50 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5-828590-0	828590 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold or Gold-Palladium	Gold or Gold-Palladium
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	31.5 µin	31.5 µin
Contact Finish Thickness - Mating	0.8 µm	0.8 µm
Contact Finish Thickness - Post	3 µm	3 µm
Contact Finish Thickness - Post	118.1 µin	118.1 µin
Contact Length - Post	0.118 in	0.118 in
Contact Length - Post	3 mm	3 mm
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Fastening Type	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks
Insulation Color	Gray	Gray
Insulation Height [z]	0.346 in	0.346 in
Insulation Height [z]	8.8 mm	8.8 mm
Insulation Material	Polyester, Glass Filled	Polyester, Glass Filled
Mounting Type	Through Hole	Through Hole
Number of Positions	50	20 - 50
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Overall Contact Length	0.652 in	0.652 in
Overall Contact Length	16.56 mm	16.56 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

828590 Series

CONN HEADER VERT 50POS 2.54MM

Part	Fastening Type	Number of Positions Loaded	Style	Termination	Insulation Height [z]	Insulation Height [z]	Contact Shape	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Contact Length - Post	Contact Length - Post	Insulation Material	Shrouding	Contact Material	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Connector Type	Overall Contact Length	Overall Contact Length	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Insulation Color	Mounting Type	Number of Positions
TE Connectivity AMP Connectors 5-828590-0	Latch Lock/Eject Hooks	All	Board to Cable/Wire	Solder	0.346 in	8.8 mm	Circular	50	31.5 µin	0.8 µm	Male Pin	0.118 in	3 mm	Polyester, Glass Filled	Shrouded - 4 Wall	Brass	Tin	2.54 mm	0.1 in	Gold or Gold-Palladium	Header	0.652 in	16.56 mm	2	3 µm	118.1 µin	0.1 in	2.54 mm	Gray	Through Hole
