ESD311U102NE6327XTSA1
ActiveInfineon Technologies
TVS DIODE 15VWM 35VC PGTSNP22
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ESD311U102NE6327XTSA1
ActiveInfineon Technologies
TVS DIODE 15VWM 35VC PGTSNP22
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ESD311U102NE6327XTSA1 |
|---|---|
| Applications | General Purpose |
| Capacitance @ Frequency | 210 pF |
| Current - Peak Pulse (10/1000µs) | 28 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |

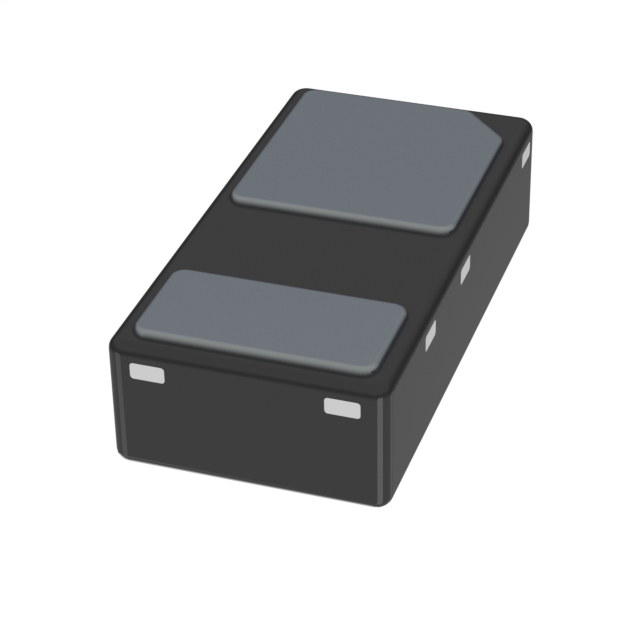

| Package / Case | 2-XDFN |
| Power - Peak Pulse | 800 W |
| Power Line Protection | False |
| Supplier Device Package | PG-TSNP-2-2 |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 16 V |
| Voltage - Reverse Standoff (Typ) | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.29 | |
| 10 | $ 0.23 | |||
| 100 | $ 0.19 | |||
| 500 | $ 0.18 | |||
| Digi-Reel® | 1 | $ 0.29 | ||
| 10 | $ 0.23 | |||
| 100 | $ 0.19 | |||
| 500 | $ 0.18 | |||
| Tape & Reel (TR) | 7500 | $ 0.15 | ||
Description
General part information
ESD311 Series
Uni-directional ESD / Transient / Surge Protection for USB VBUSLines
