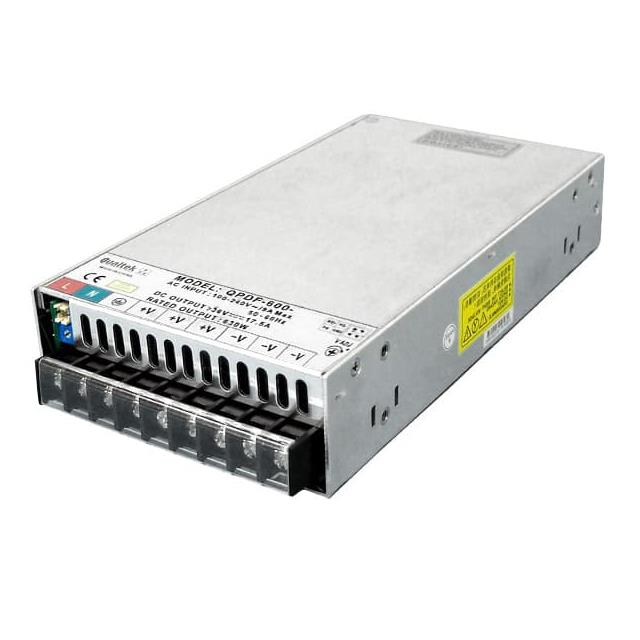

QPDF-600-12
ActiveQualtek
AC/DC CONVERTER 12V 600W
Deep-Dive with AI
Search across all available documentation for this part.
QPDF-600-12
ActiveQualtek
AC/DC CONVERTER 12V 600W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | QPDF-600-12 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, cURus, CE |
| Current - Output 1 | 42 A |
| Efficiency | 88 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 600 W |
| Size / Dimension [x] | 8.58 in |
| Size / Dimension [x] | 218 mm |
| Size / Dimension [y] | 4.59 in |
| Size / Dimension [y] | 116.5 mm |
| Size / Dimension [z] | 42.5 mm |
| Size / Dimension [z] | 1.67 in |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 267.26 | |
Description
General part information
QPDF-600 Series
Enclosed AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
