0236-SS-20

Active

RAF Electronic Hardware

3/4HD X 1.00 X 1/4-20 THD

Search across all available documentation for this part.

Active

RAF Electronic Hardware

3/4HD X 1.00 X 1/4-20 THD

Technical Specifications

Parameters and characteristics for this part

3/4HD X 1.00 X 1/4-20 THD

Part	Head Height [z]	Head Height [z]	Head Height [z]	Type	Length - Overall	Length - Overall	Drive Type	Length - Below Head	Length - Below Head	Head Diameter [diameter]	Head Diameter [diameter]	Head Diameter [diameter]	Screw Head Type	Material	Thread Size
RAF Electronic Hardware 0236-SS-20	0.25 in	6.35 mm	0.25 in	Panel Screw	1.25 in	31.75 mm	Slotted	25.4 mm	1 in	0.75 in	19.05 mm	0.75 in	Knob	Stainless Steel	1/4"-20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

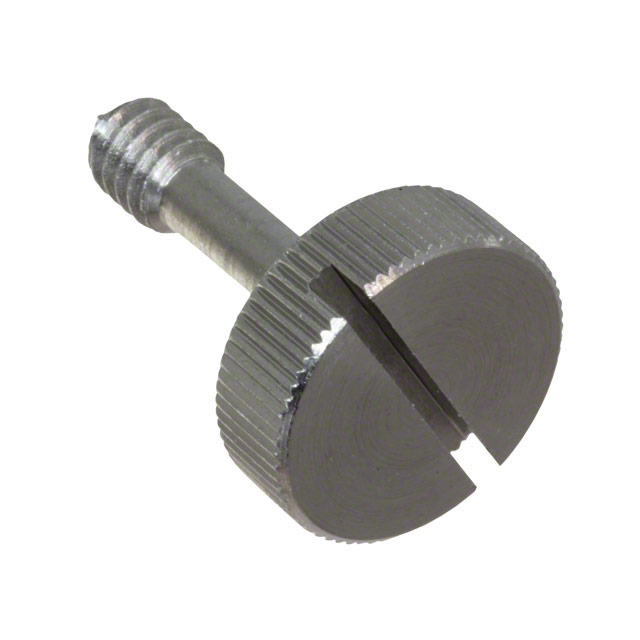

1/4"-20 Knob Panel Screw Slotted Drive Stainless Steel

Technical documentation and resources

No documents available
