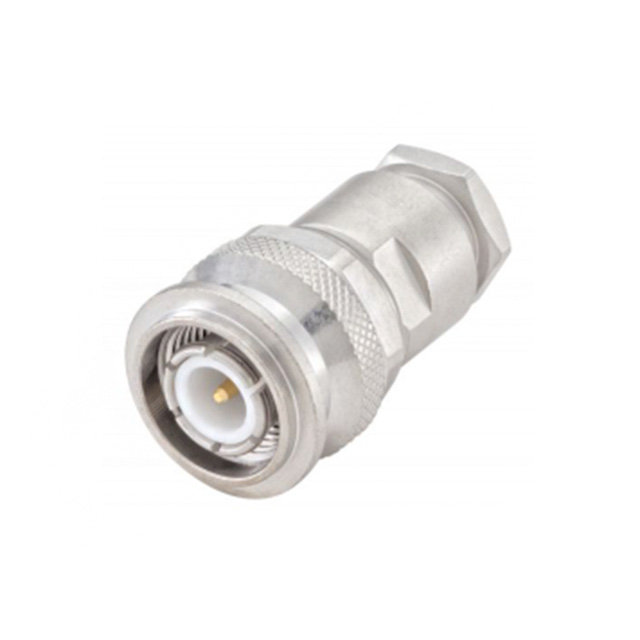

56S106-006N5

Active

Rosenberger

CONN TNC PLUG STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN TNC PLUG STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	56S106-006N5

Body Finish	White Bronze
Body Material	Brass
Cable Group	141
Cable Group	RG-58C
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 pcs, 1 pcs, 1 pcs, 2 pcs, 2 pcs, 1 pcs, 1 pcs
Ingress Protection	IP63 - Dust Tight, Water Resistant
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	500 V

Part	Connector Type	Center Contact Plating	Center Contact Material	Dielectric Material	Mounting Type	Housing Color	Mating Cycles	Frequency - Max [Max]	Number of Ports	Shield Termination	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Cable Group	Cable Group	Connector Style	Impedance	Body Finish	Voltage Rating	Includes	Ingress Protection
Rosenberger 56S106-006N5	Male Pin Plug	Gold	Brass	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Silver	500	10 GHz	1	Clamp	Brass	-65 ░C	165 °C	Solder	141	RG-58C	TNC	50 Ohms	White Bronze	500 V	1 pcs 1 pcs 1 pcs 1 pcs 1 pcs 2 pcs 2 pcs	IP63 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	150	$ 26.61

General part information

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
